TP53 reporter library scan - detailed analysis
Max Trauernicht
Netherlands Cancer Institute - van Steensel labm.trauernicht@nki.nl
14/06/2023
Introduction
~6,000 barcoded TP53 reporters were probed in MCF7 TP53WT/KO cells and stimulated with Nutlin-3a. I previously processed the raw sequencing data, quantified the pDNA data and normalized the cDNA data. In this script, a detailed dissection of the reporter activities will be carried out to understand how TP53 drives transcription and to identify the most sensitive TP53 reporters.
Setup
Libraries
Functions
Load data

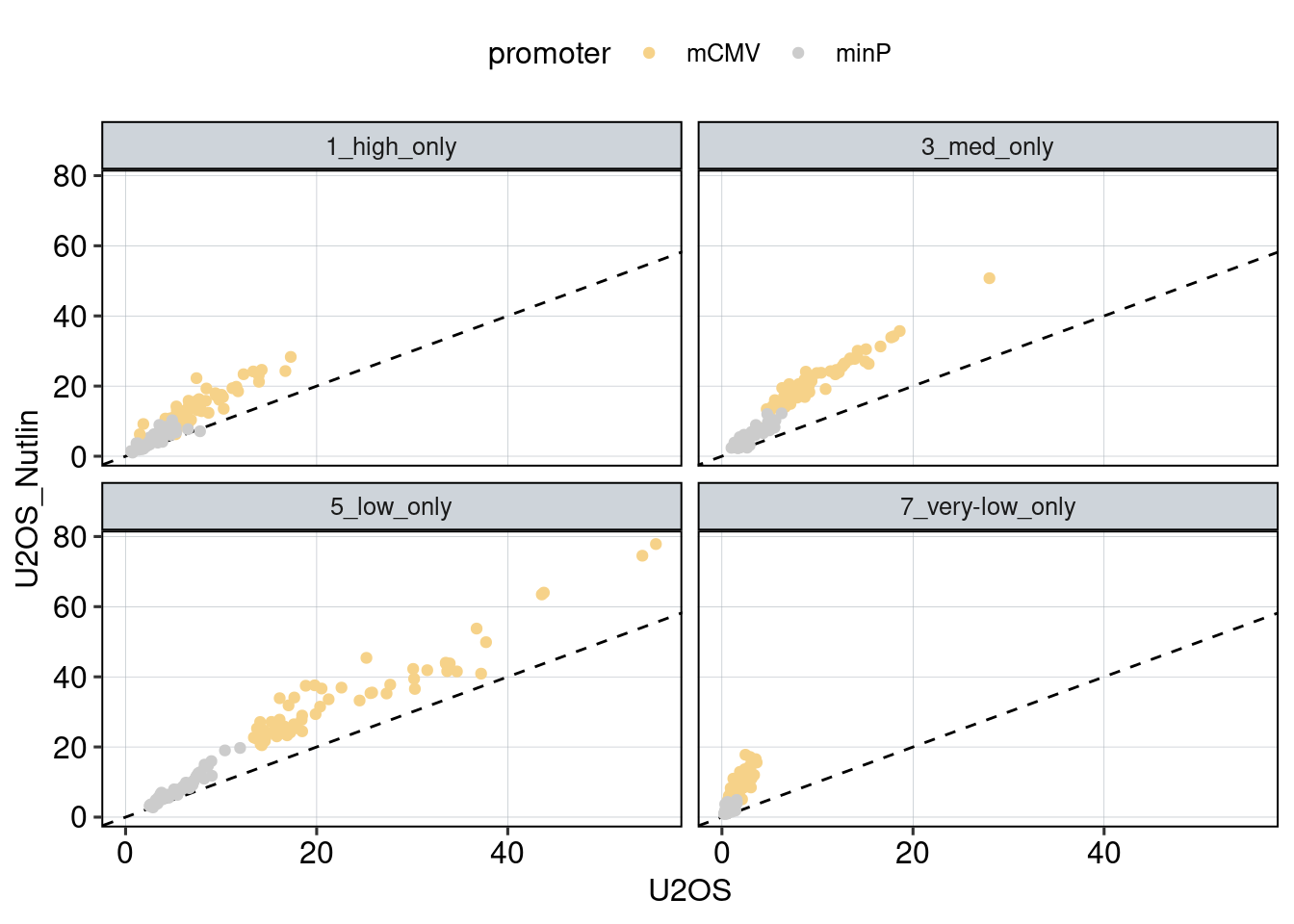

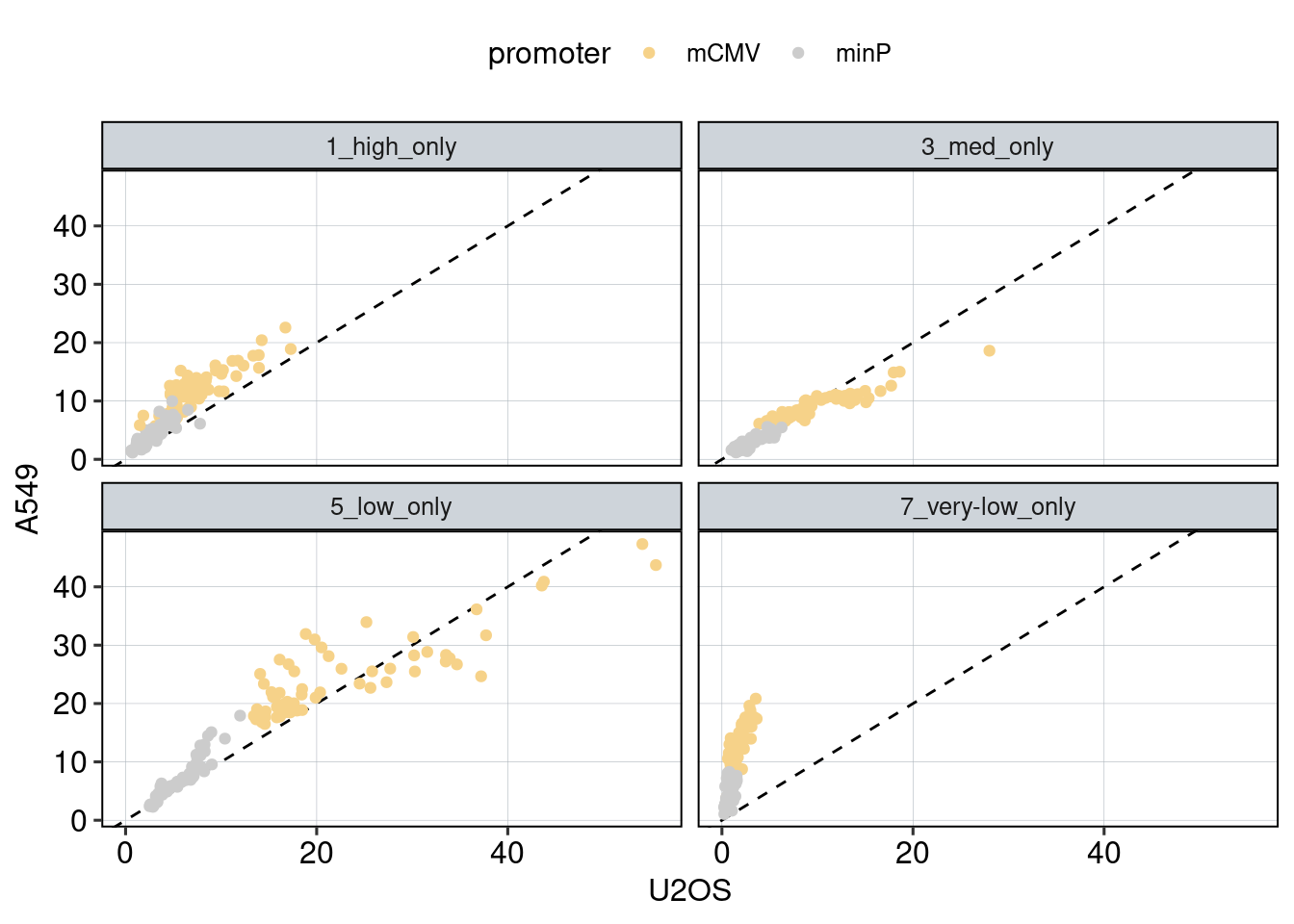

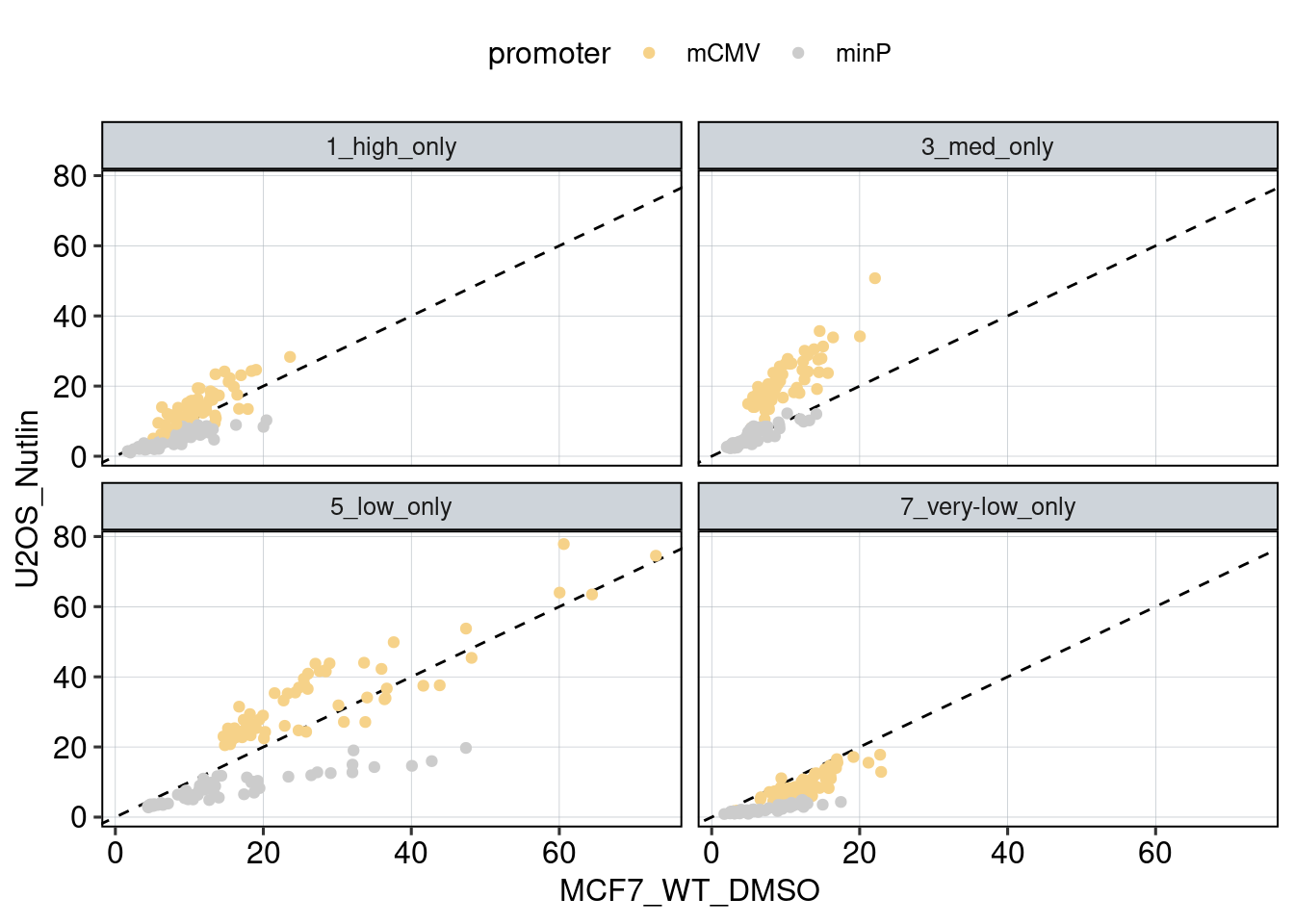

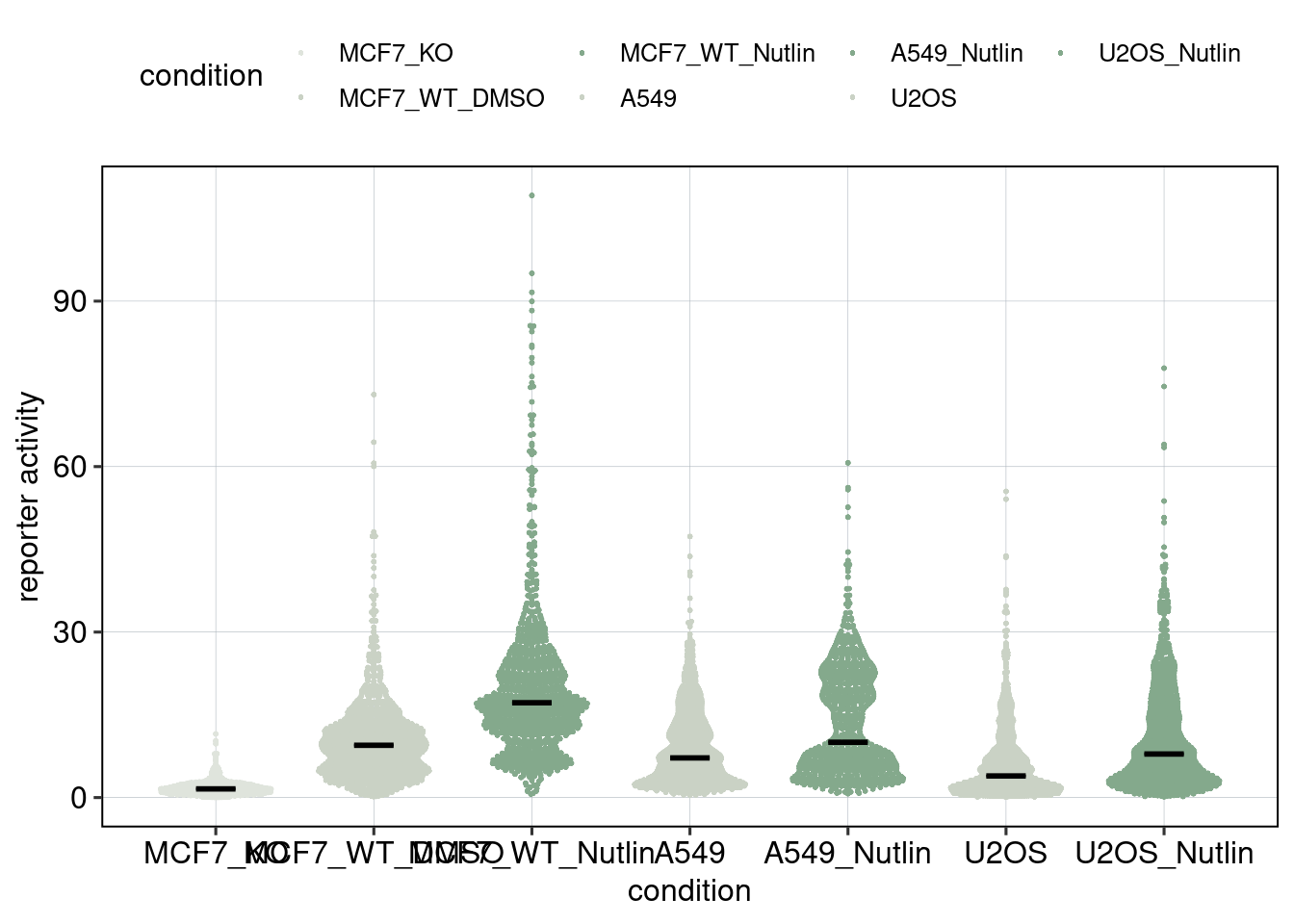

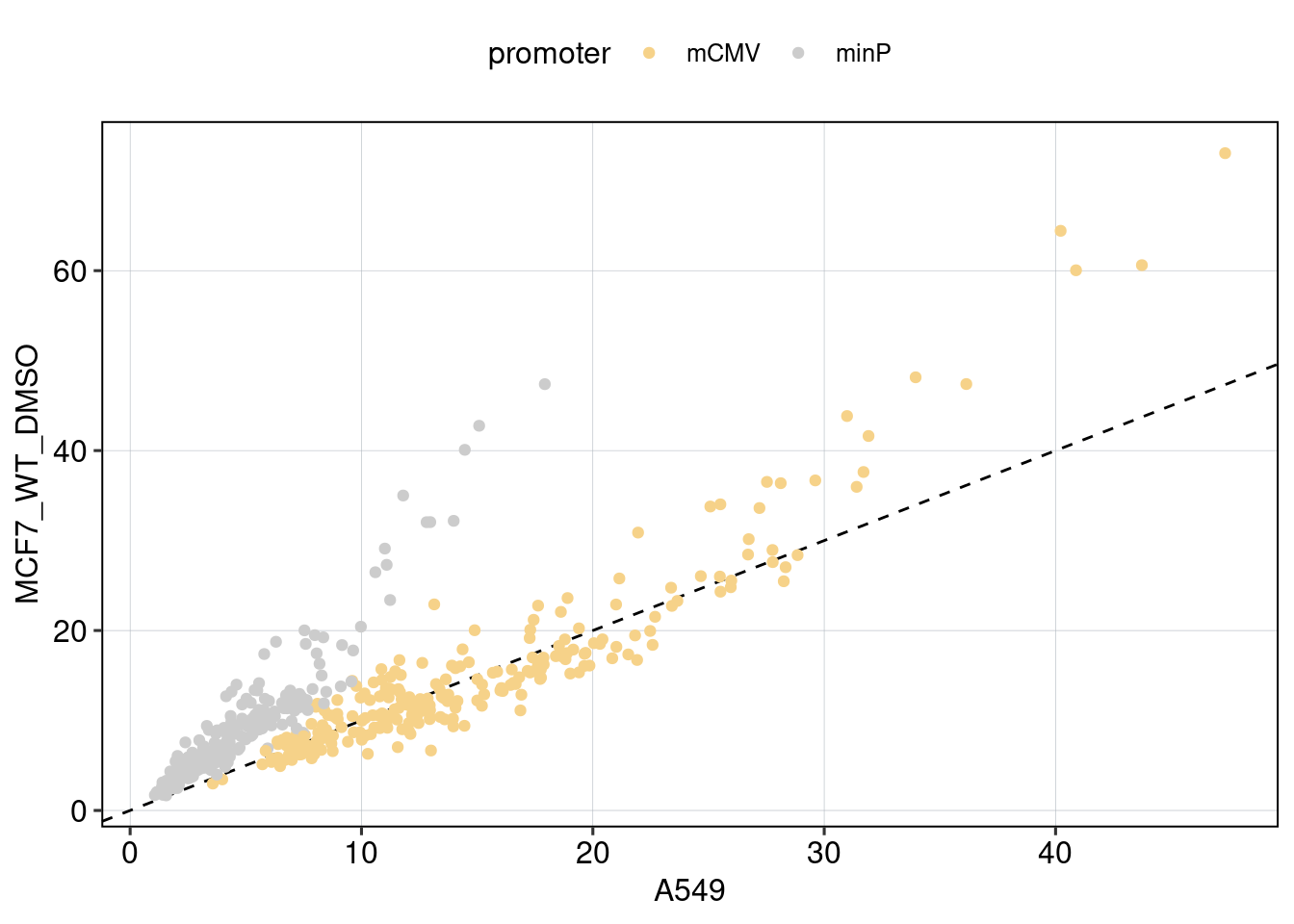

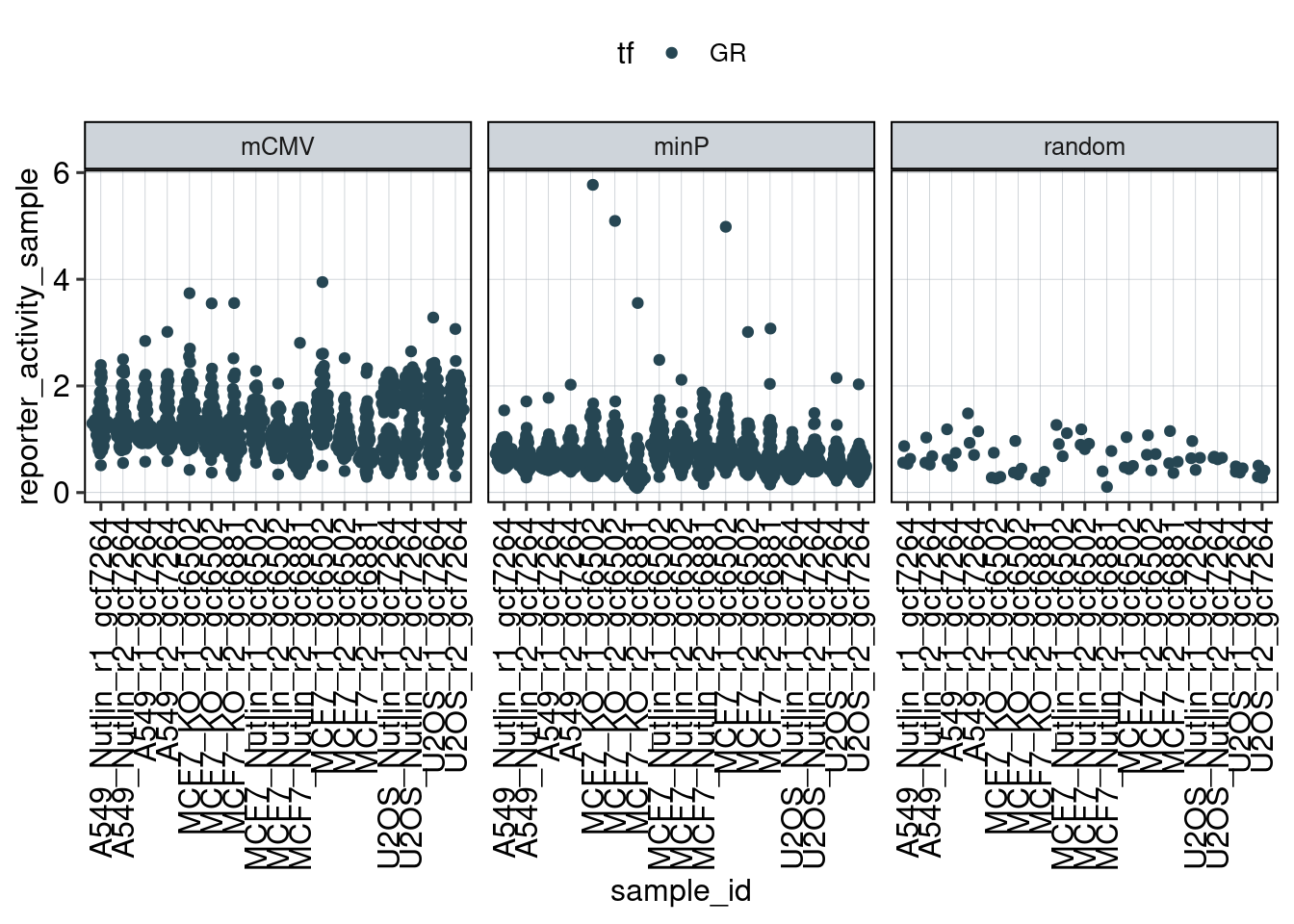

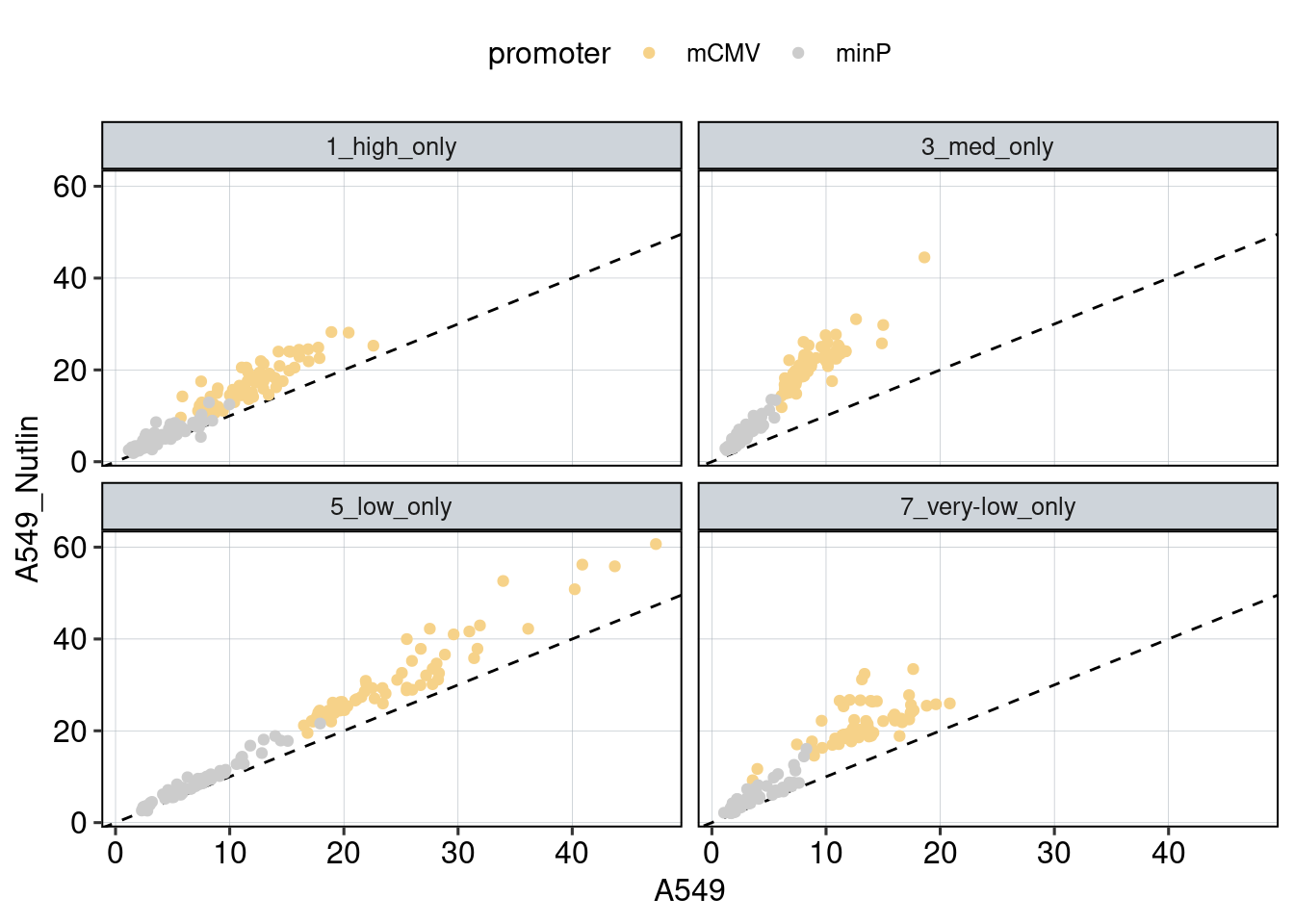

Figure 1: Characterize P53 activities per condition

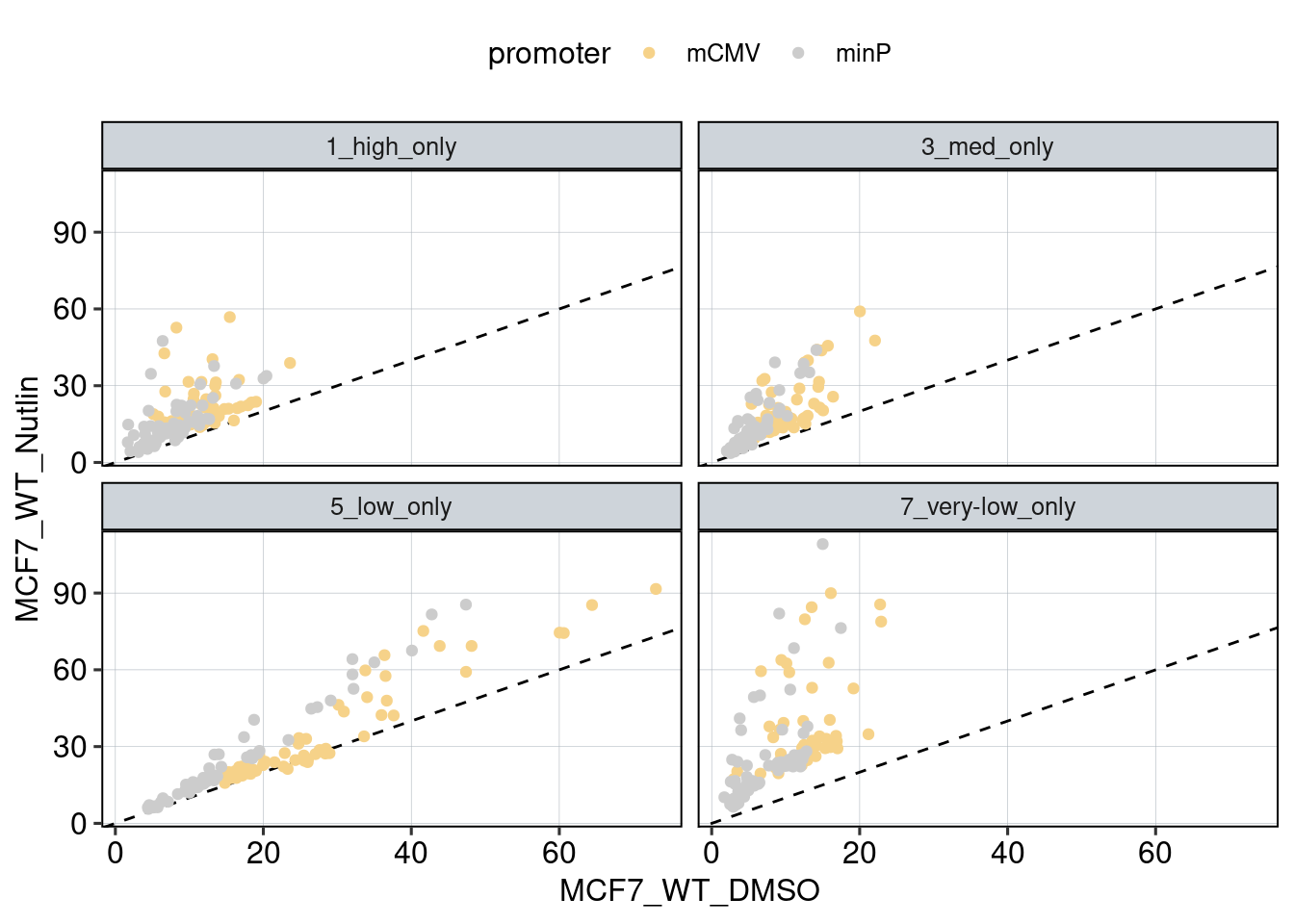

Aim: I want to characterize the reporter activity distributions in
the tested conditions. Does Nutlin boost P53 reporter activity and is
P53 inactive in the KO cells?
## [1] 0.9685877## [1] 0.9036356## [1] 0.903232

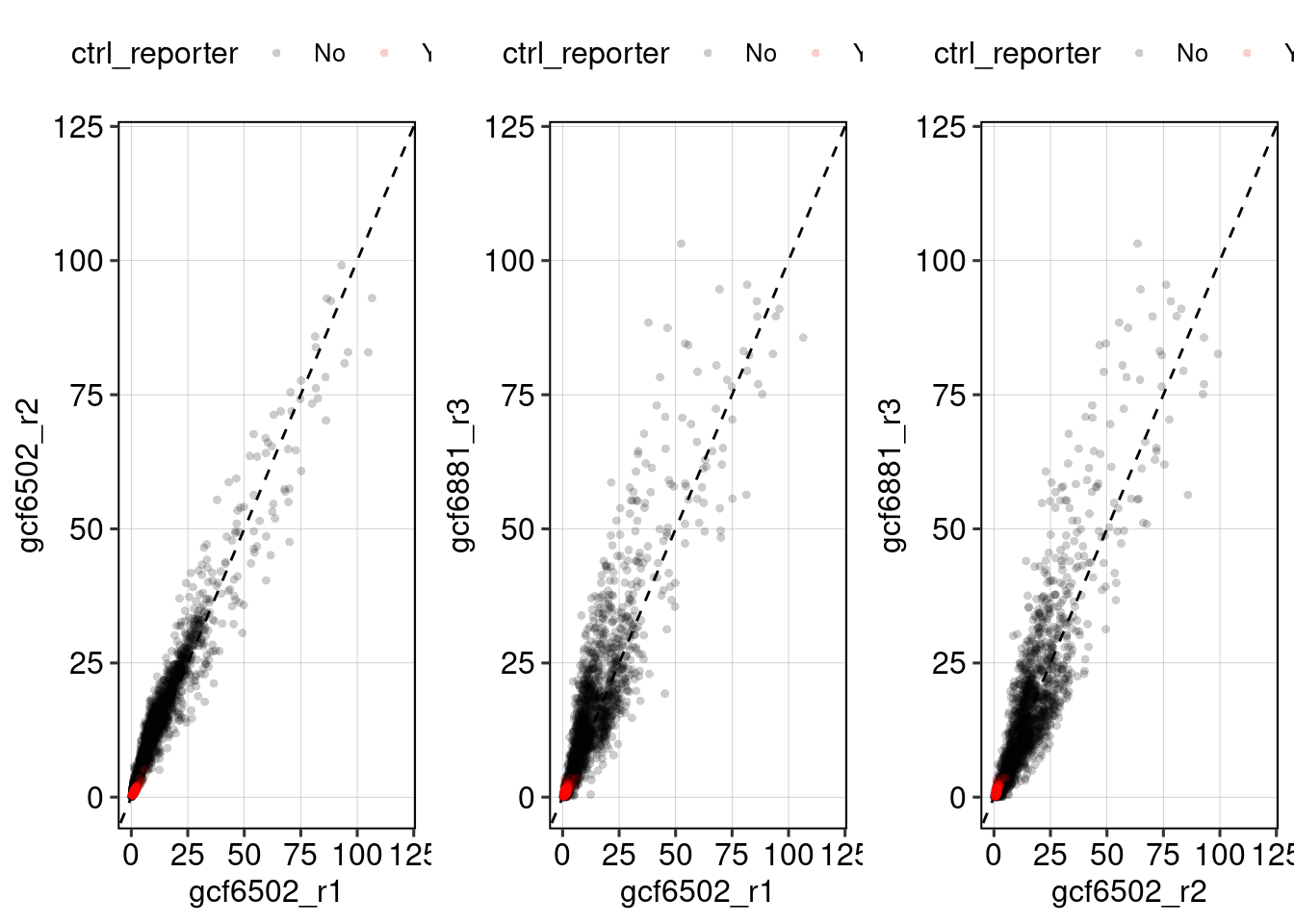

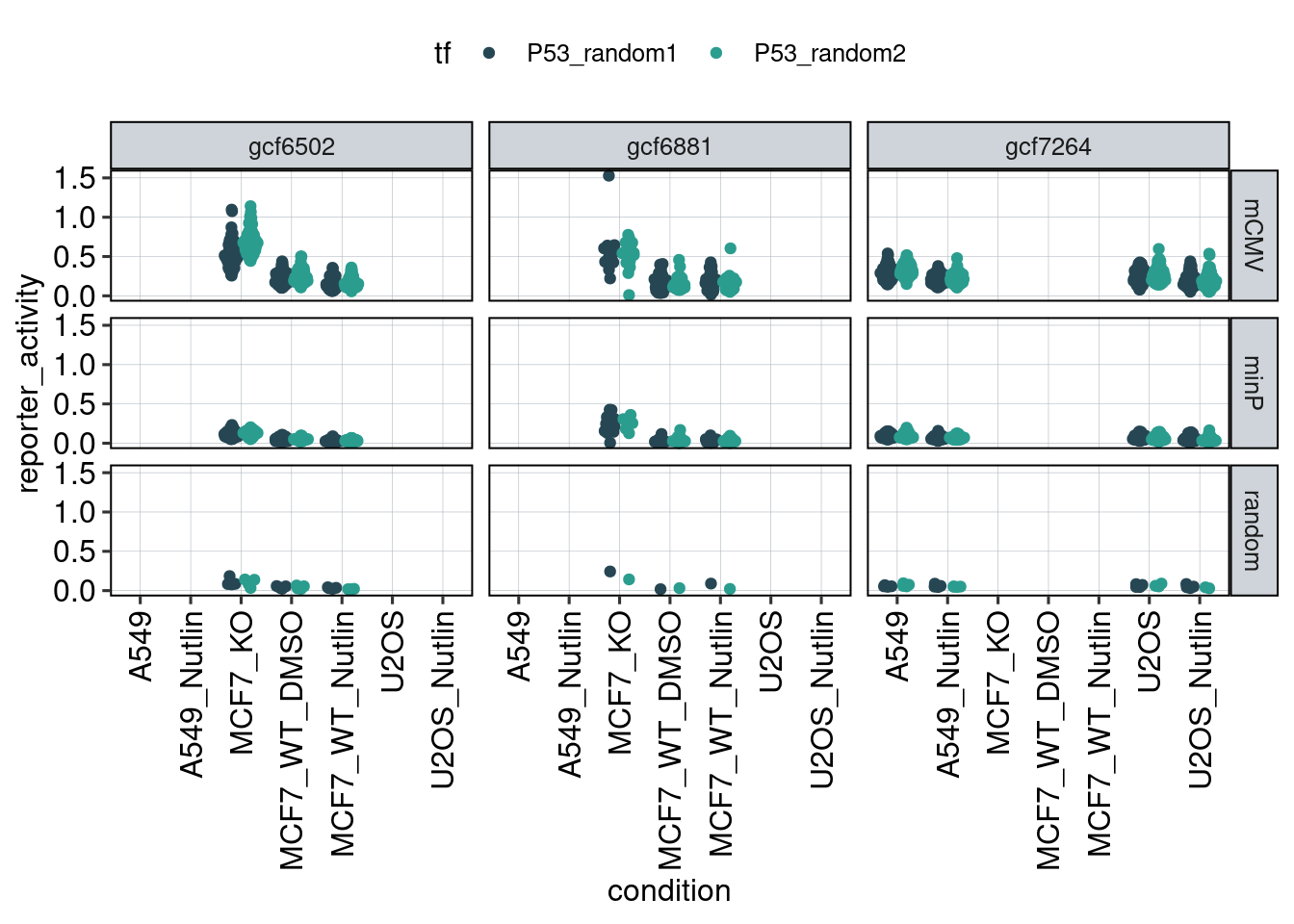

Conclusion: 1F: Replicates do correlate well. 1G: Negative controls are inactive compared to P53 reporters. P53 reporters become more active in WT cells and even more active upon Nutlin stimulation.

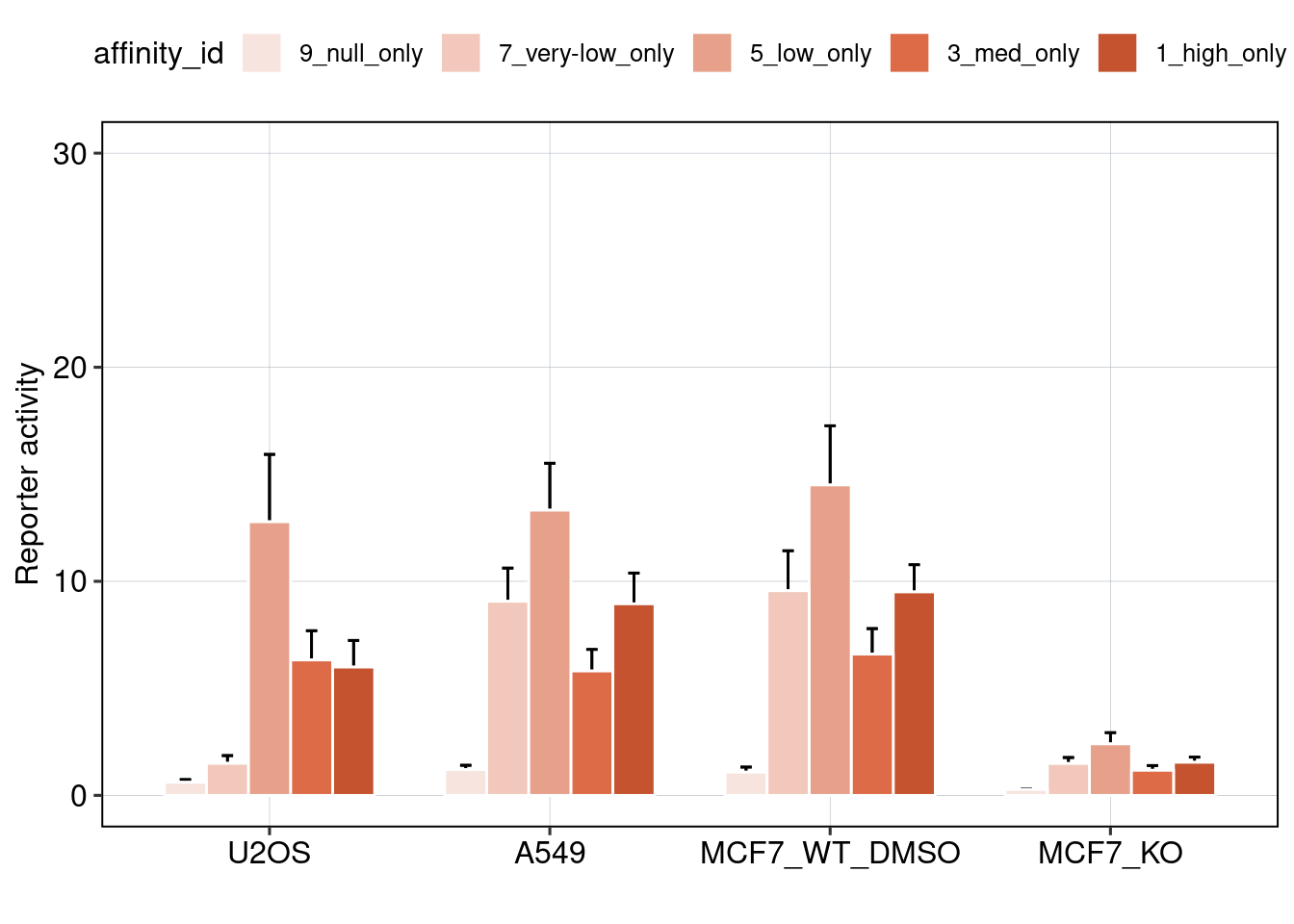

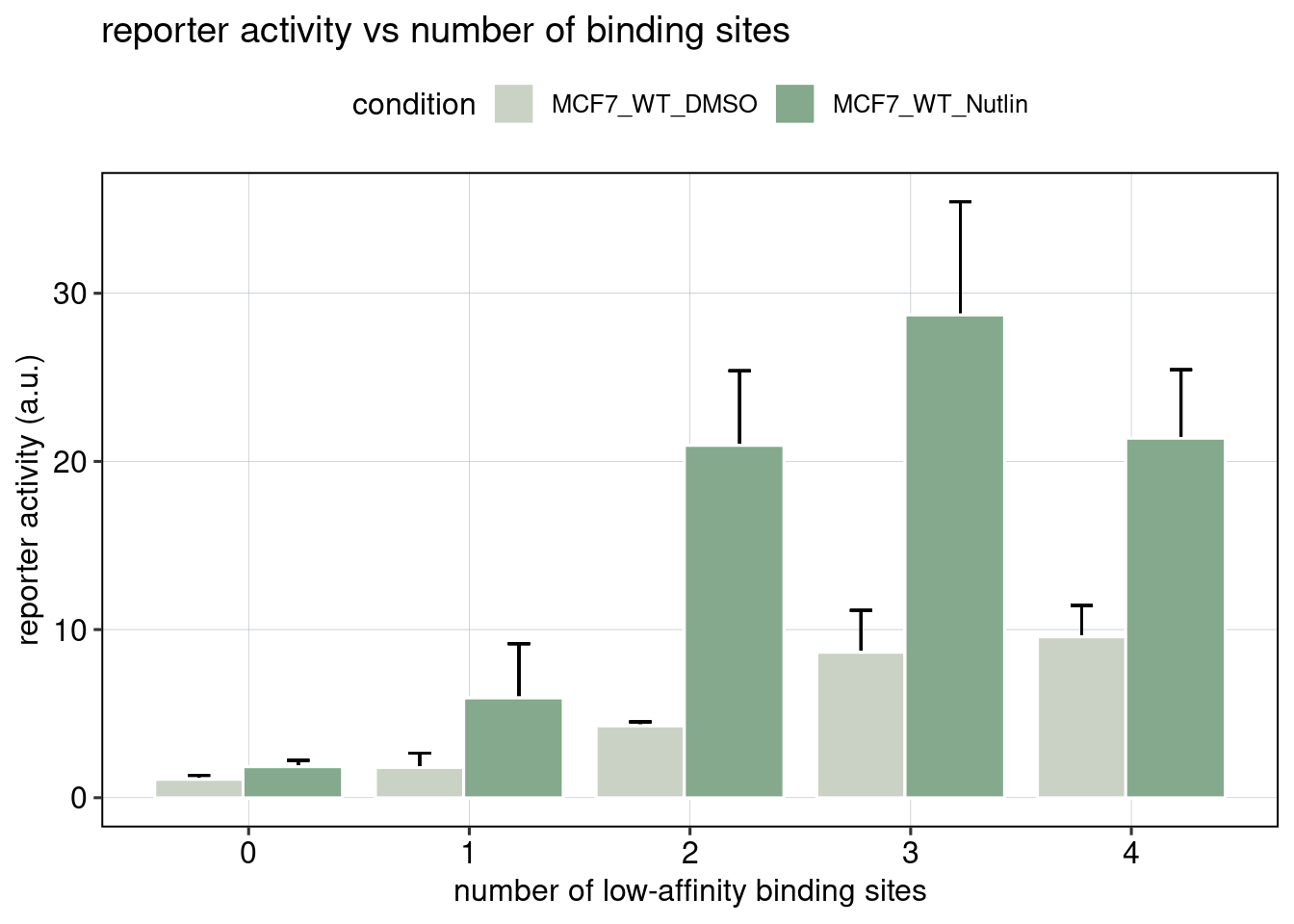

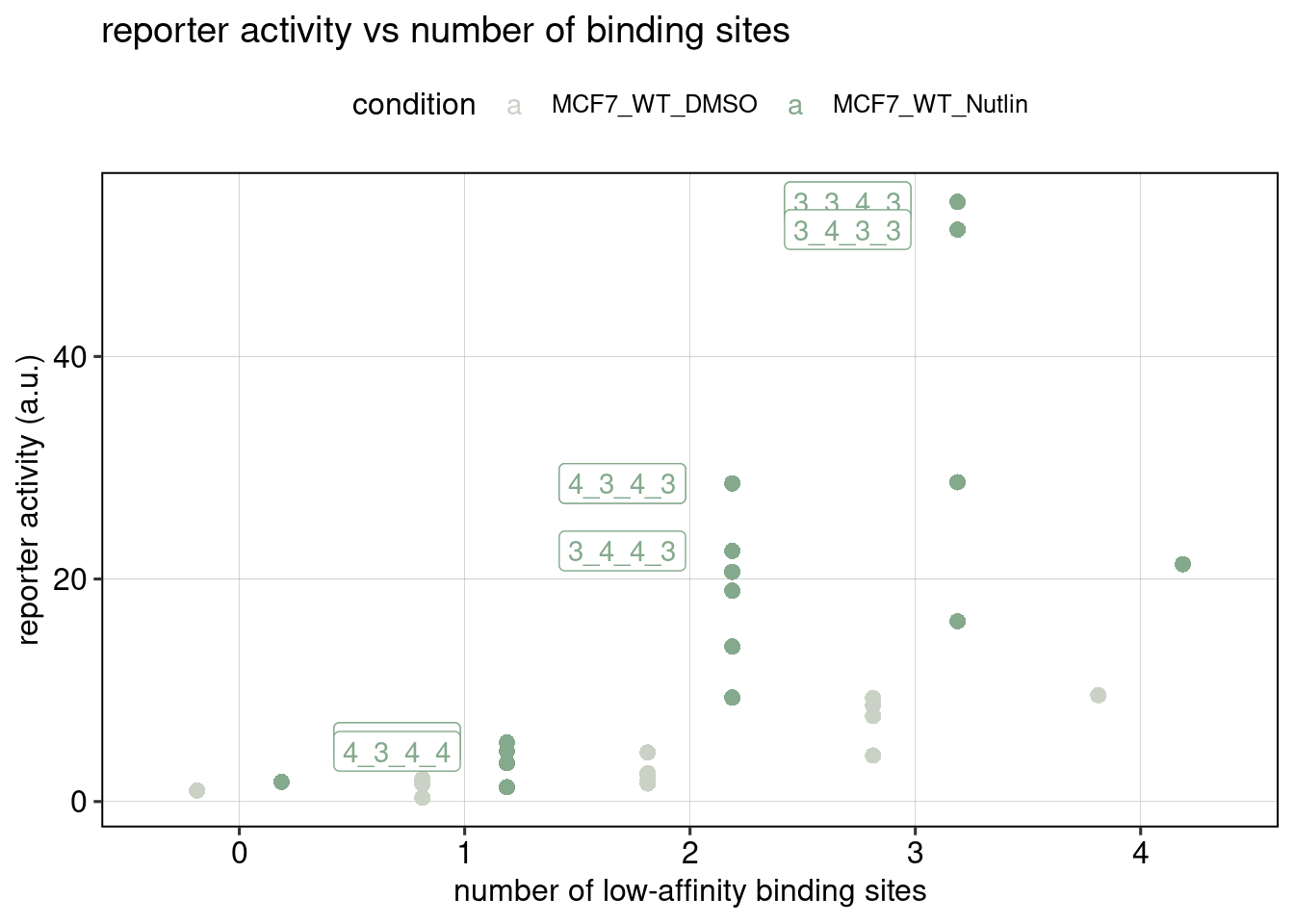

Figure 2: Effect of affinity and binding sites + binding site positioning

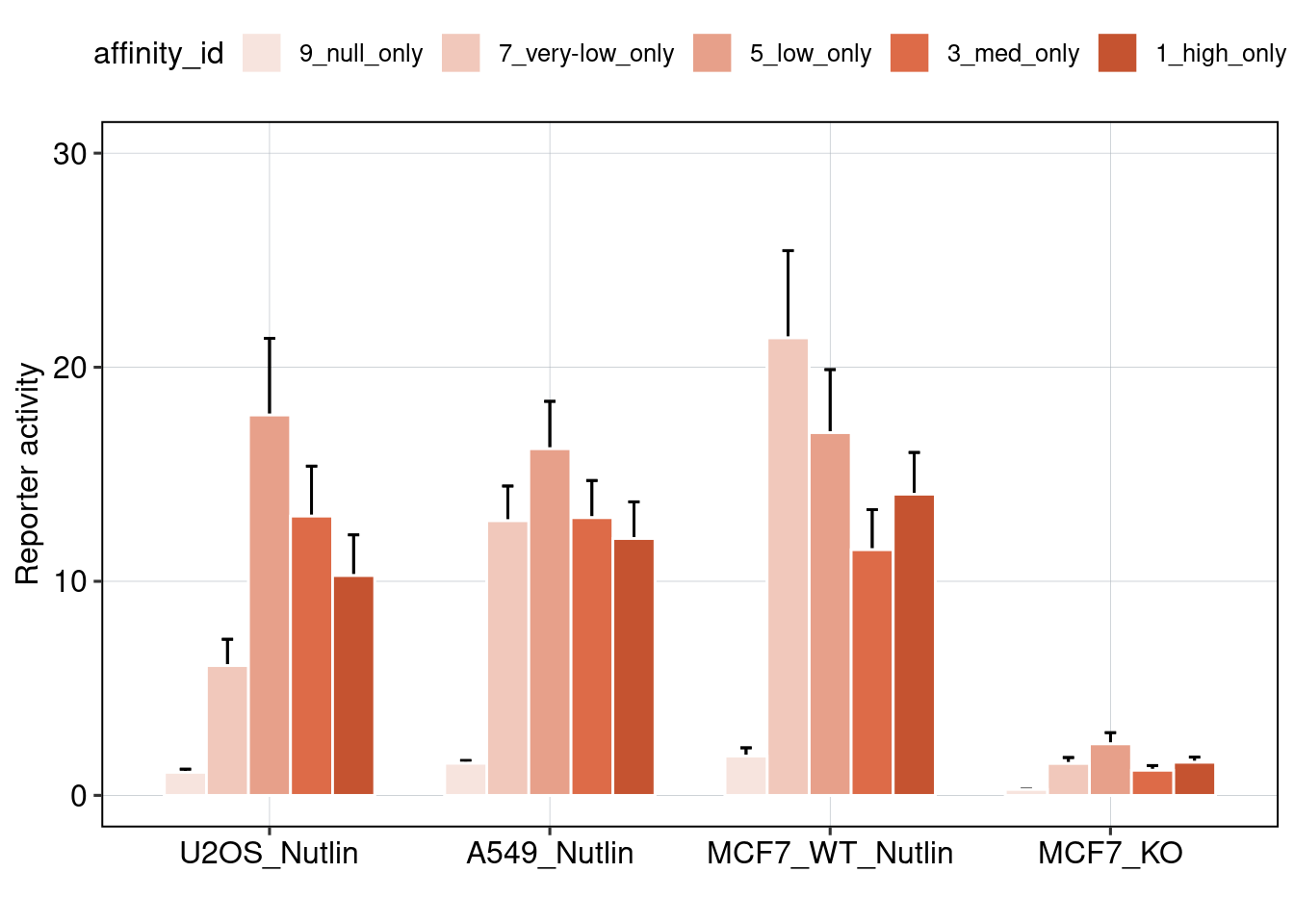

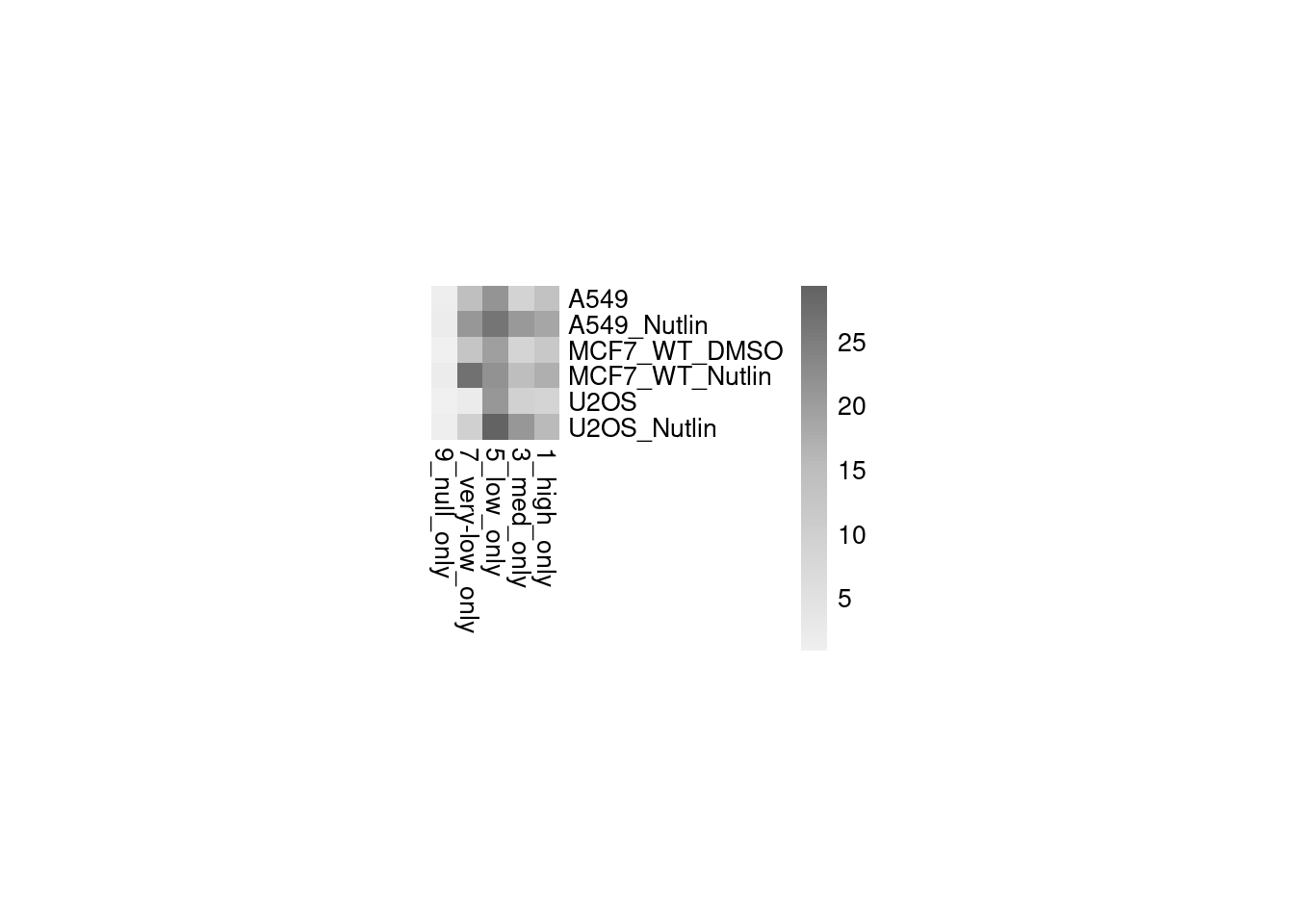

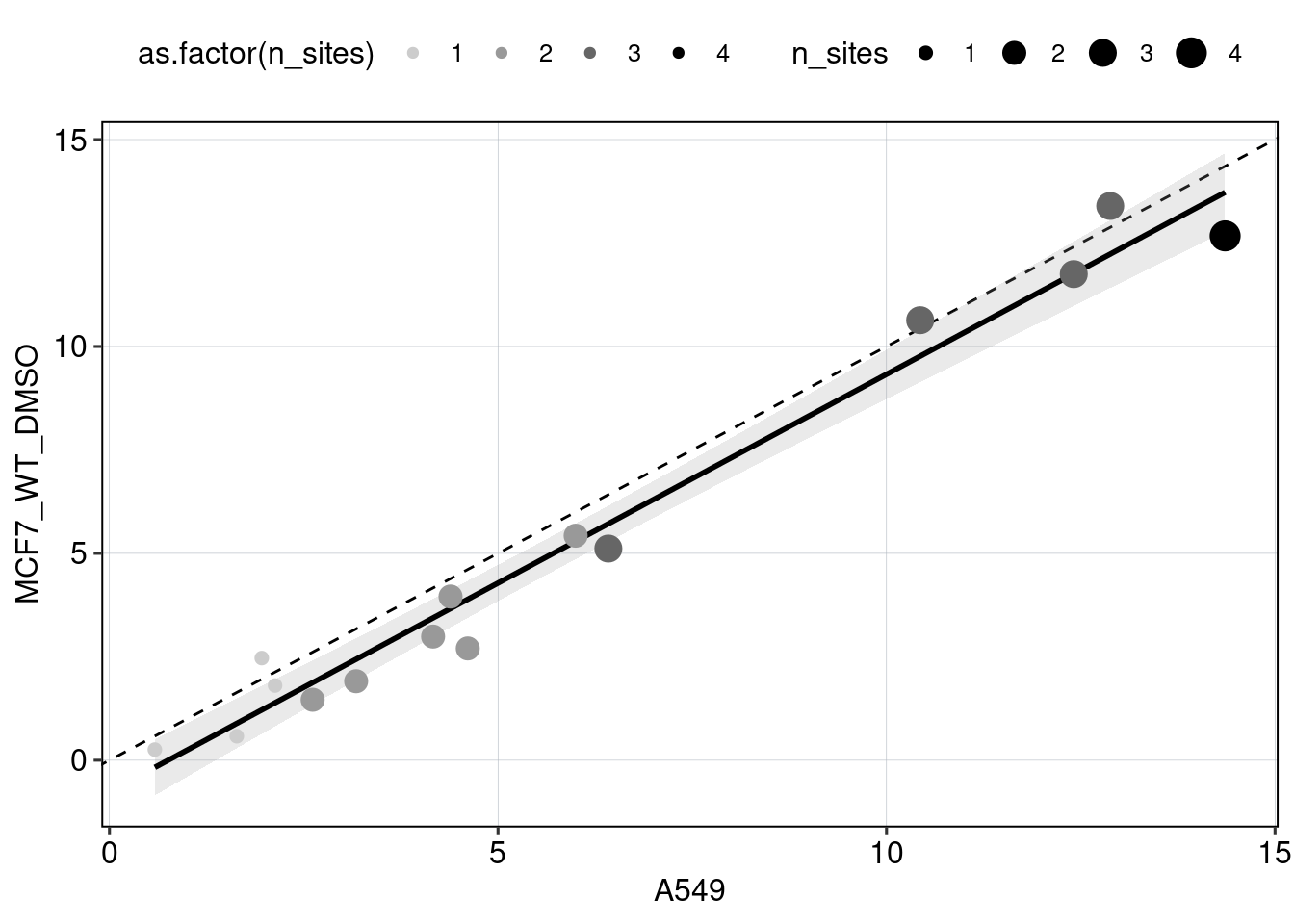

Aim: How does the binding site affinity, copy number, and their respective positioning affect reporter activity?
## [1] 0.006910845
## [1] 0.02978148
## [1] 0.0005569714
Conclusion: BS006 is the most responsive to Nutlin-3a. Addition of binding sites is super-additive. Positioning of binding sites matters - putting them directly next to each other is inhibitory, and putting them close to the TSS leads to higher activity.

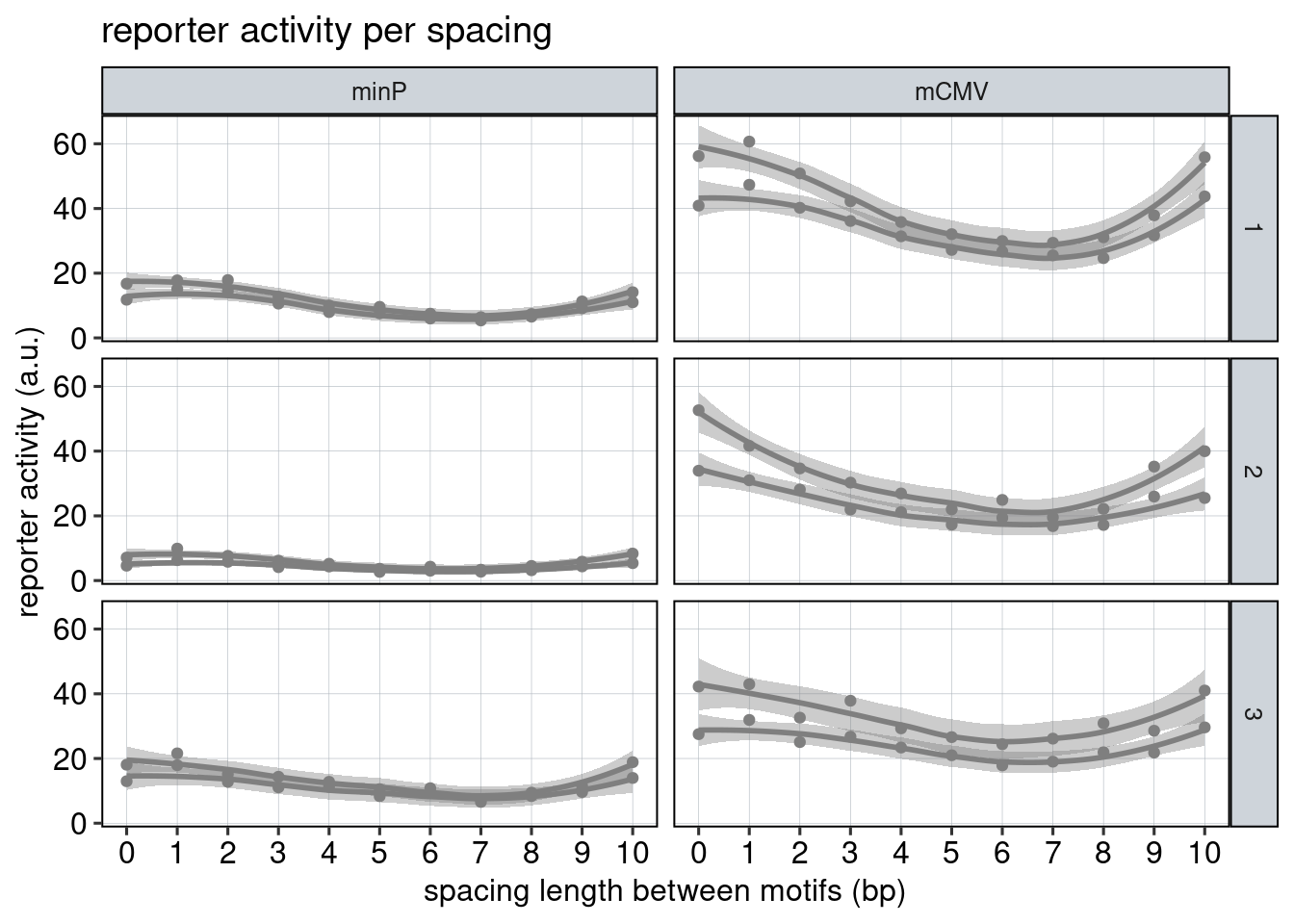

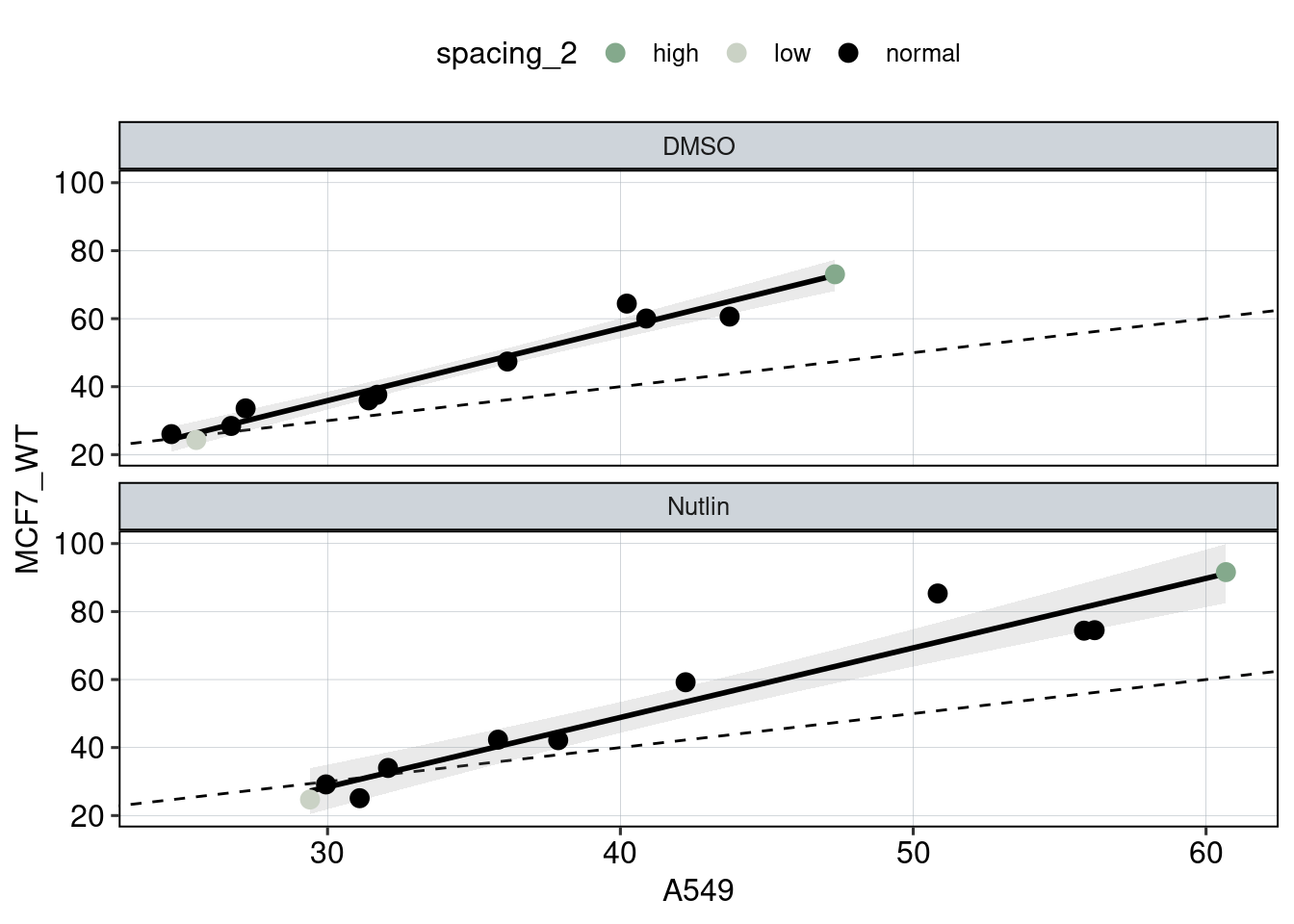

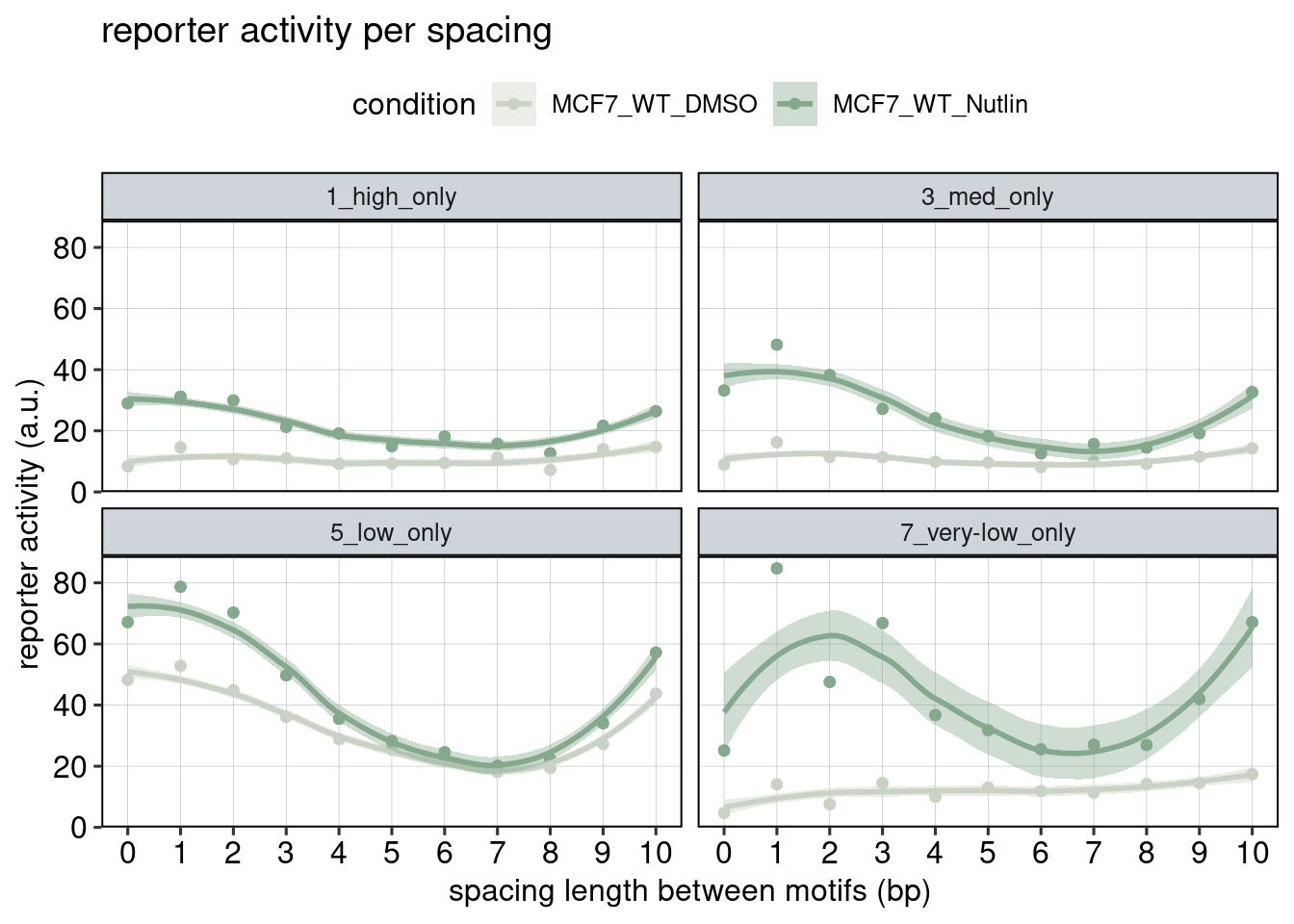

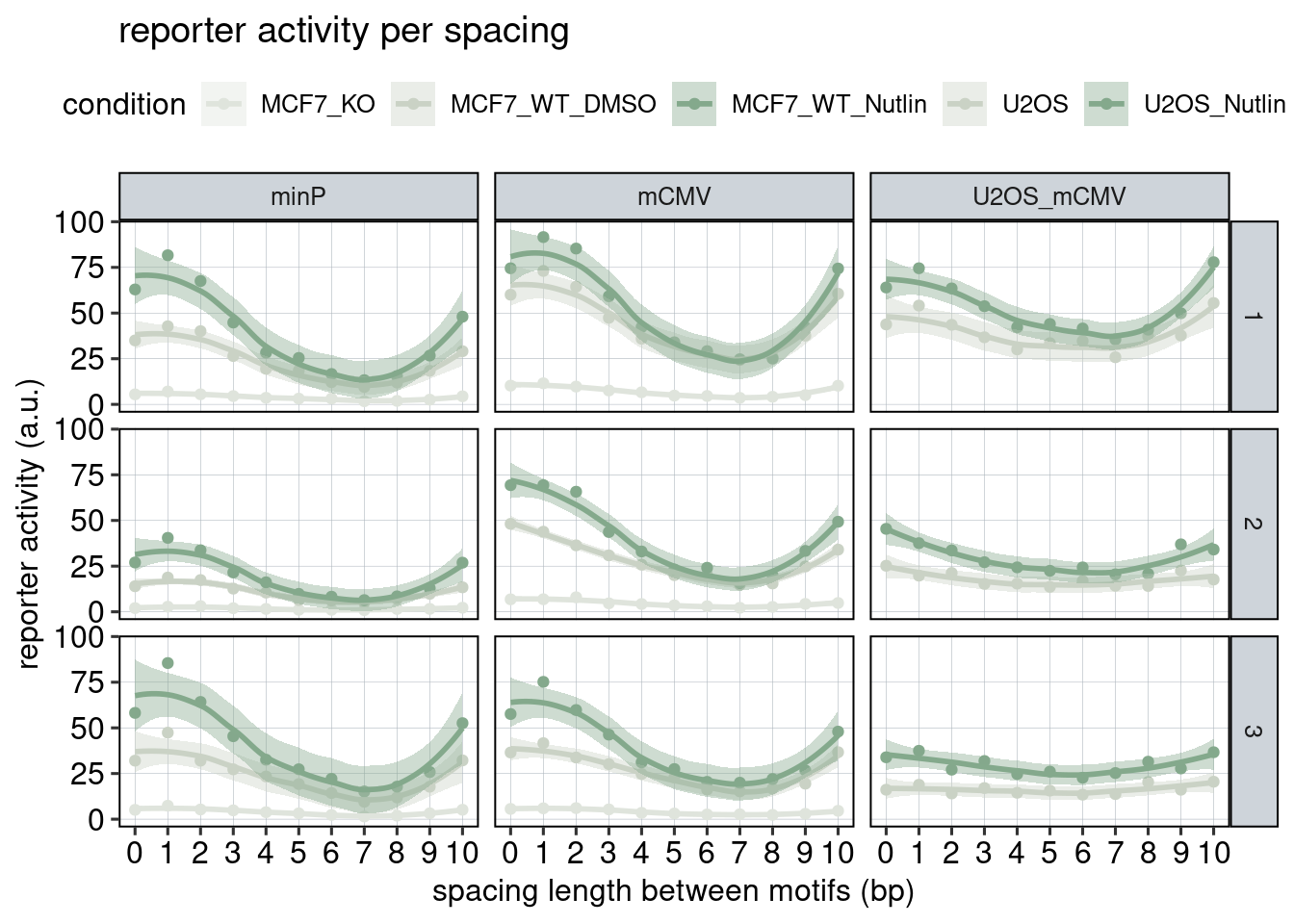

Figure 3: The effect of the spacer length.

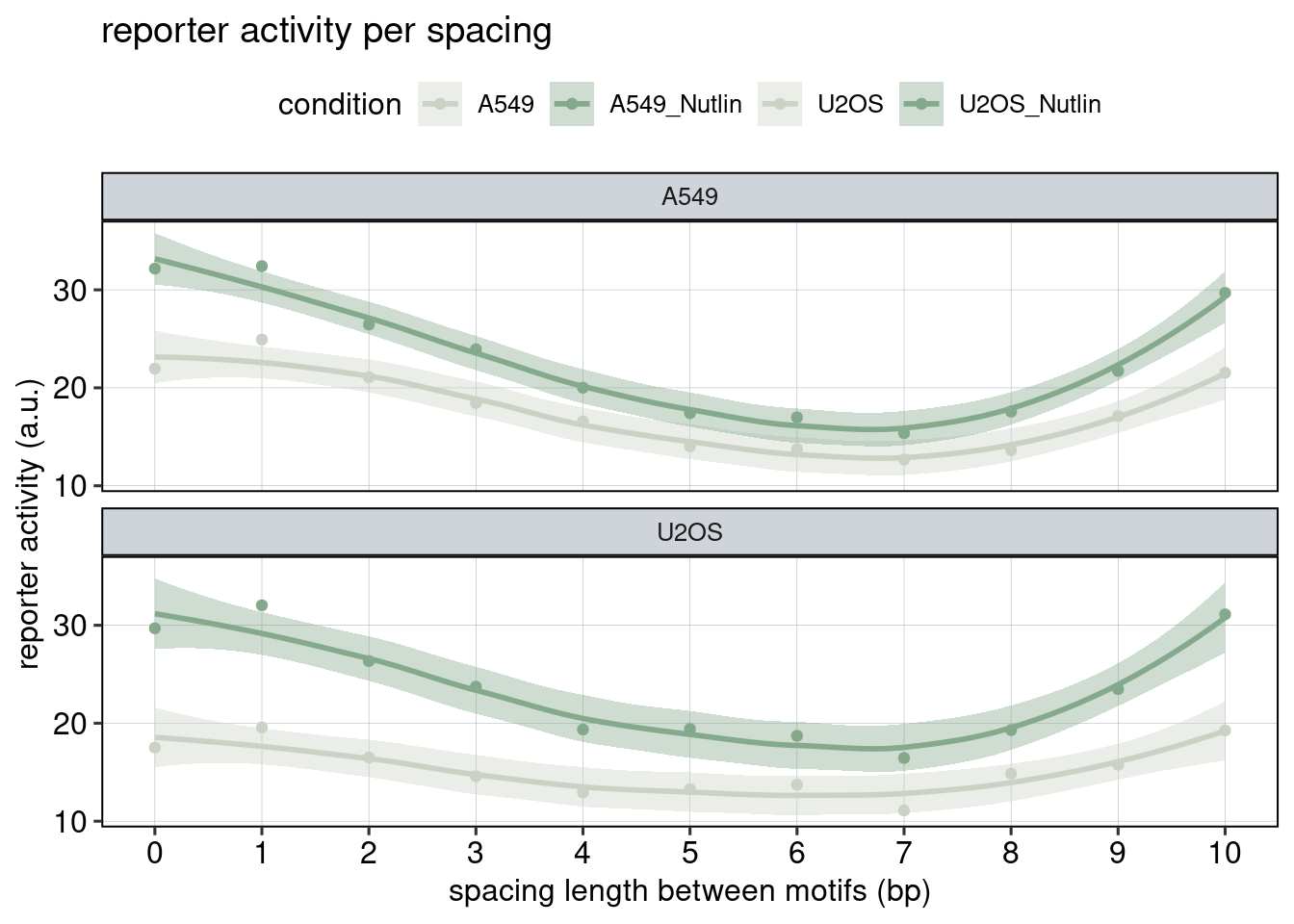

Aim: Show how the spacer length between adjacent binding sites affects reporter activity.
Conclusion: Spacer length influences activity periodically. Adjacent binding sites need to be 180 degrees tilted with respect to each other to achieve optimal activation.

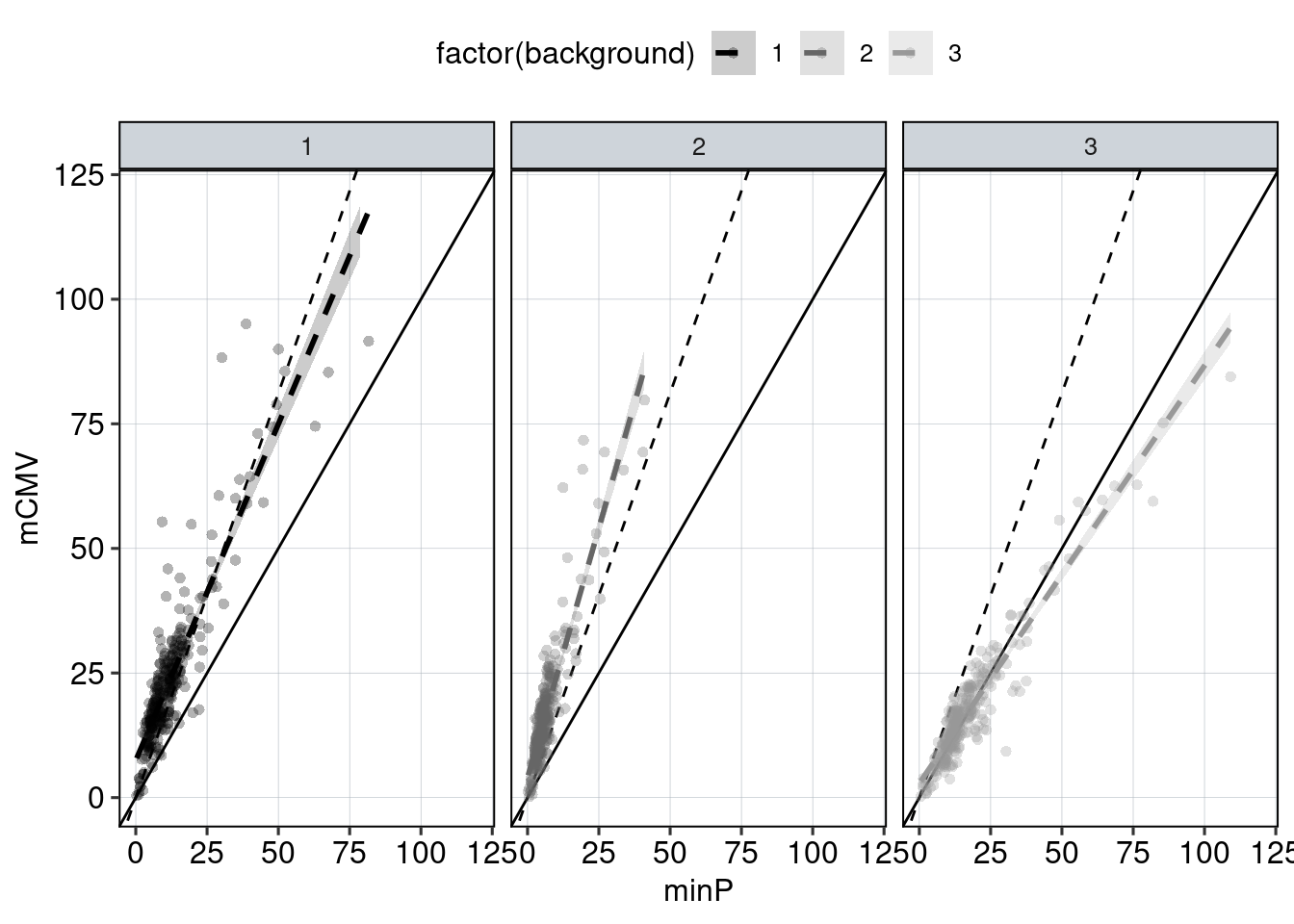

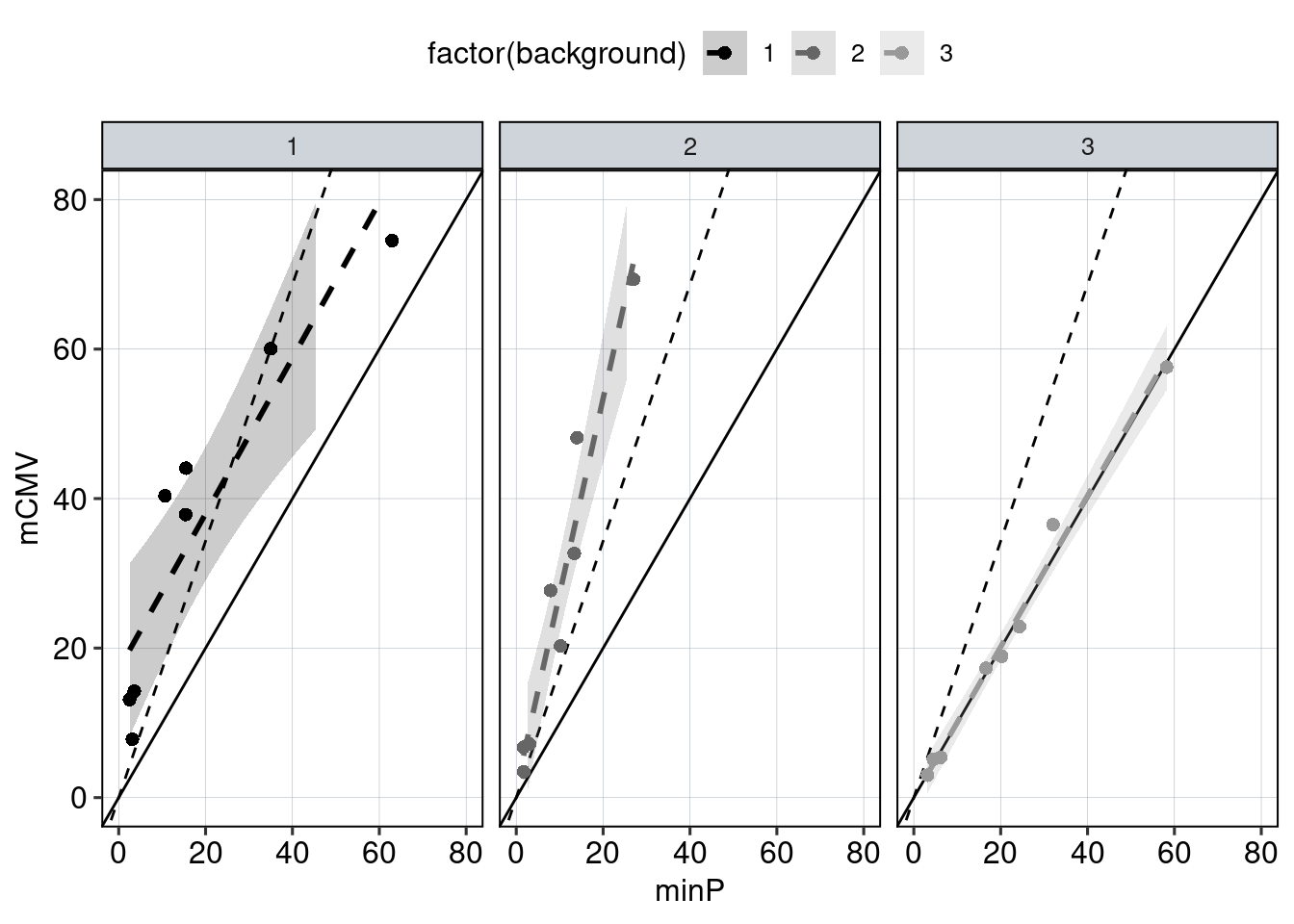

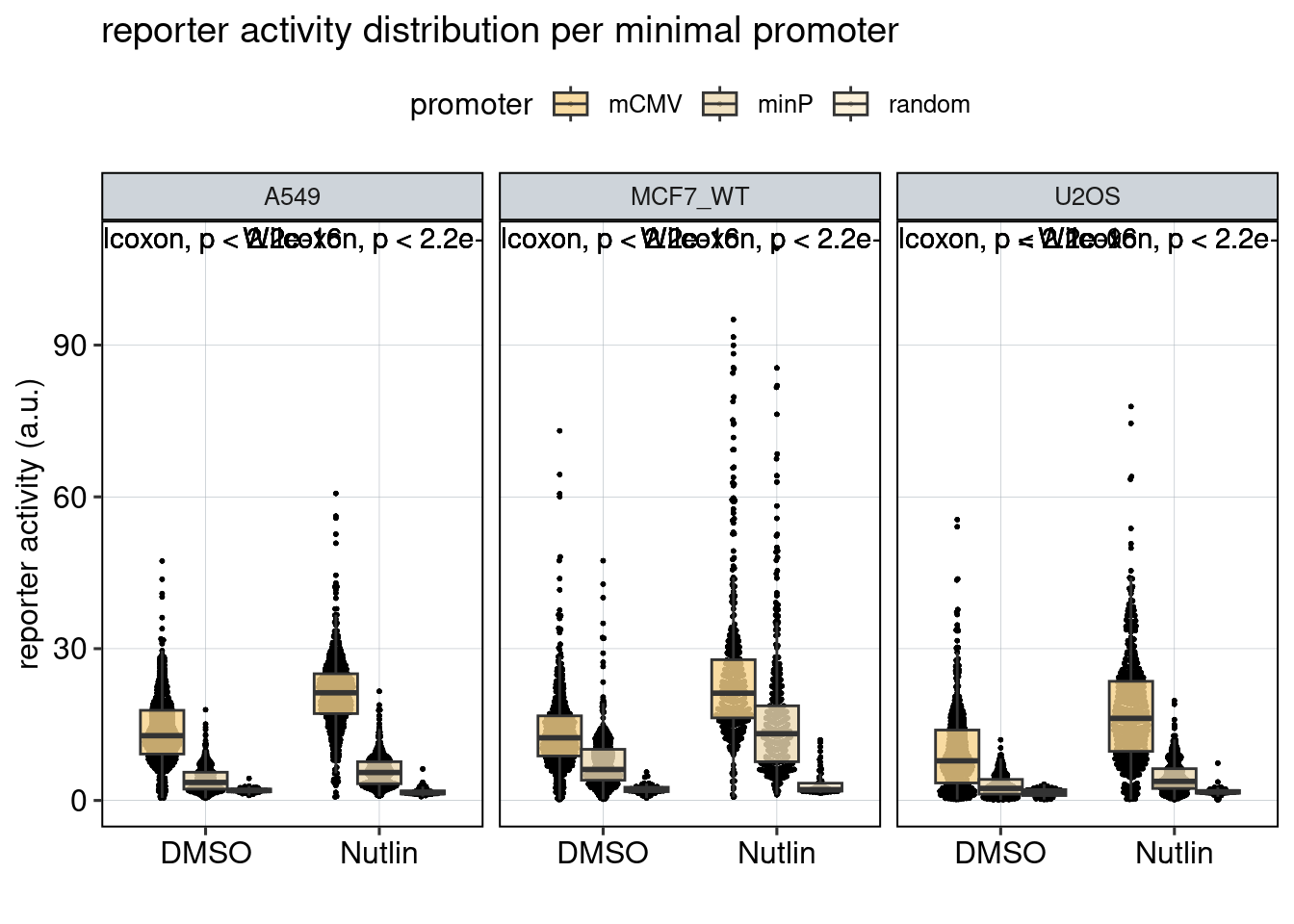

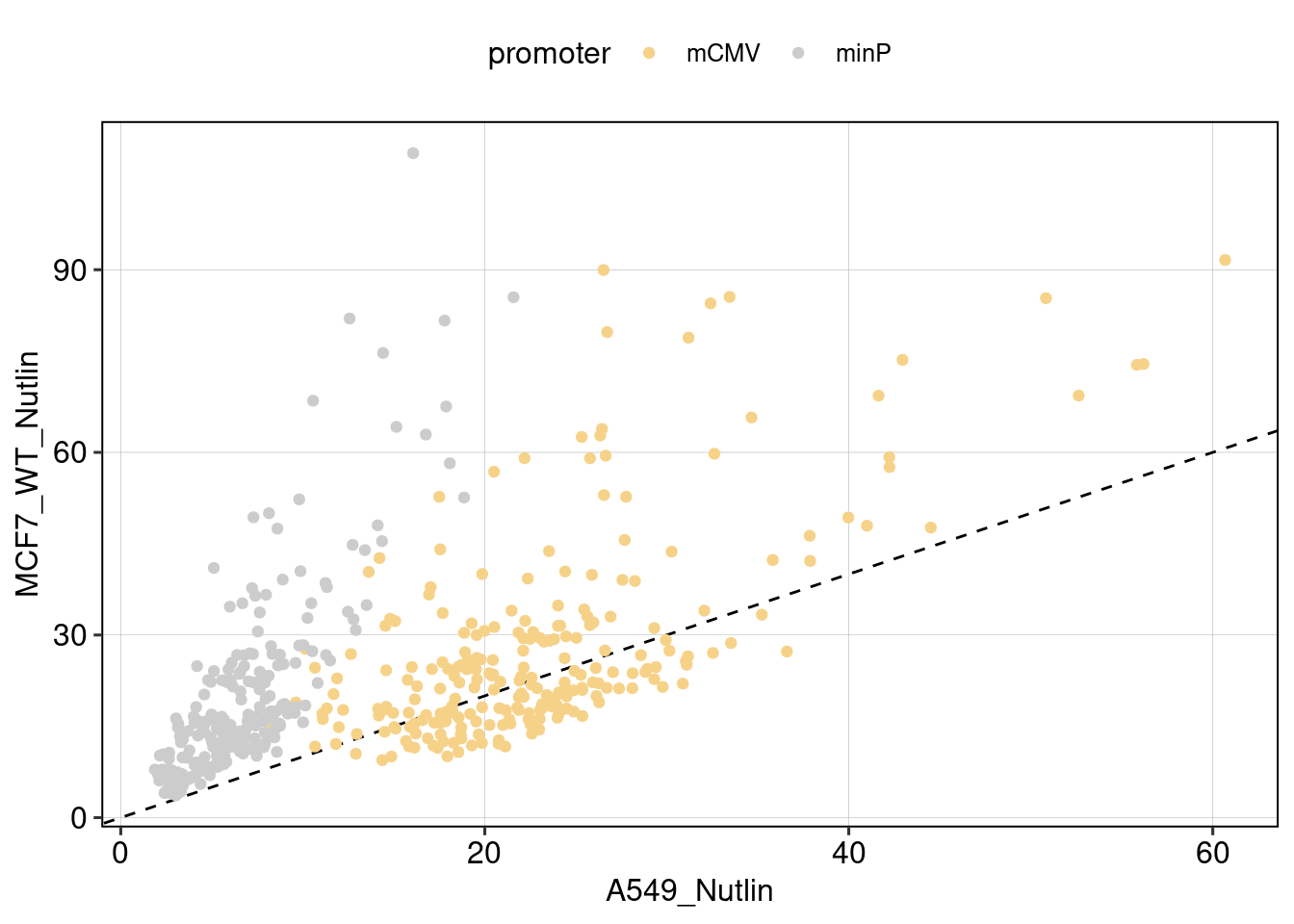

Figure 4: The effect of the minimal promoter and the spacer sequence.

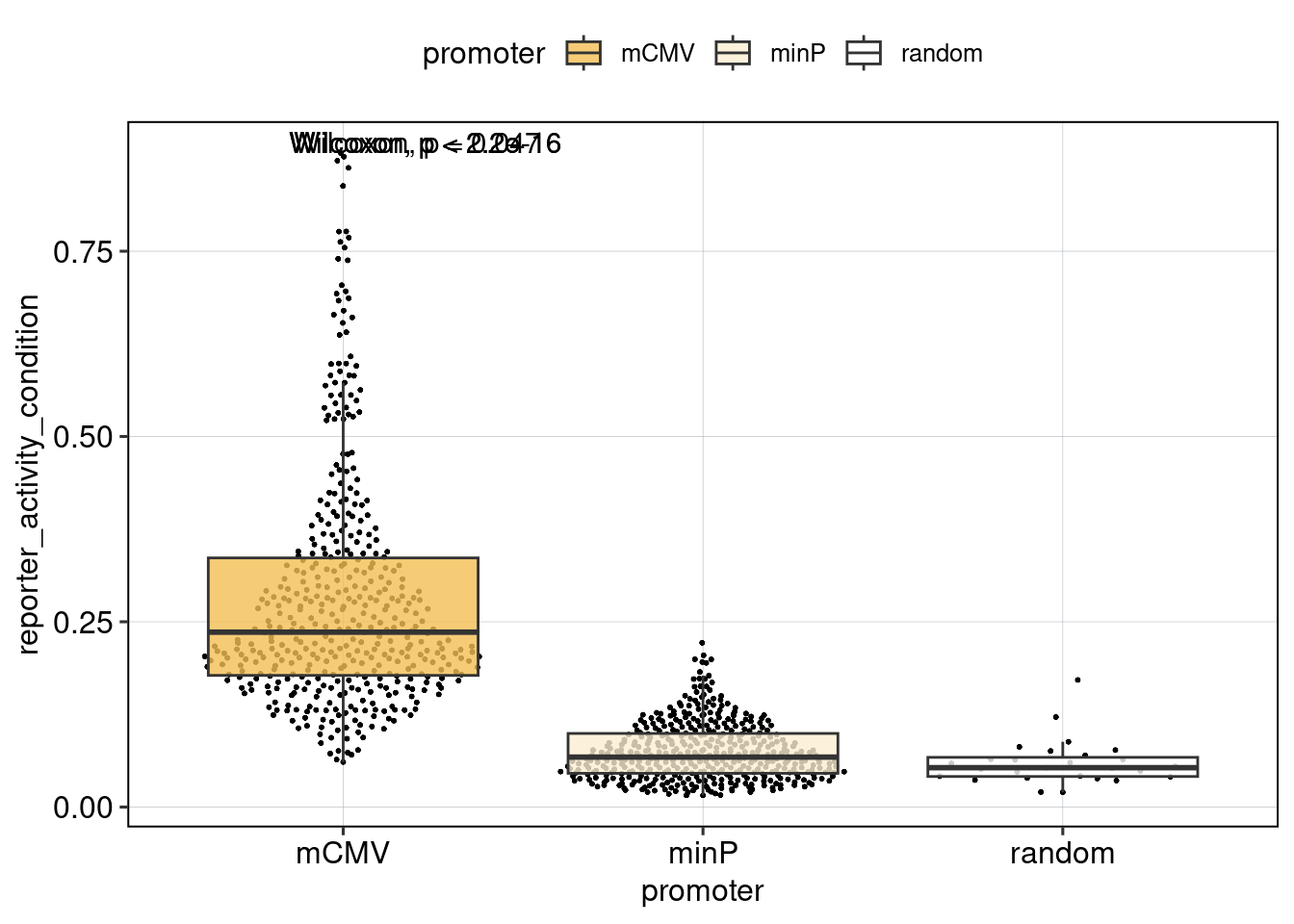

Aim: Show how the P53 reporters interact with the two minimal promoters and the three spacer sequences.
Conclusion: Promoter and spacer sequence influence activity linearly.

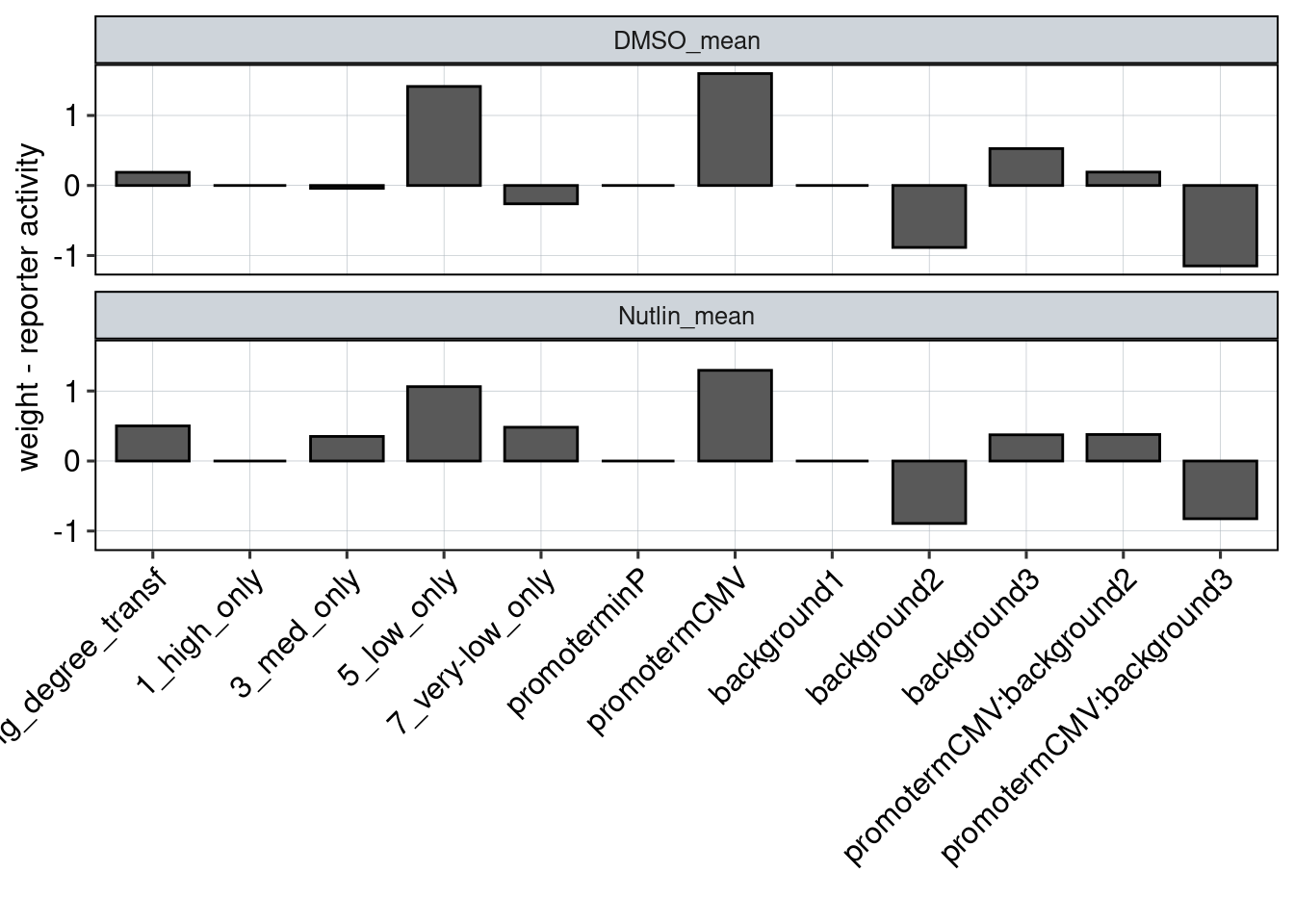

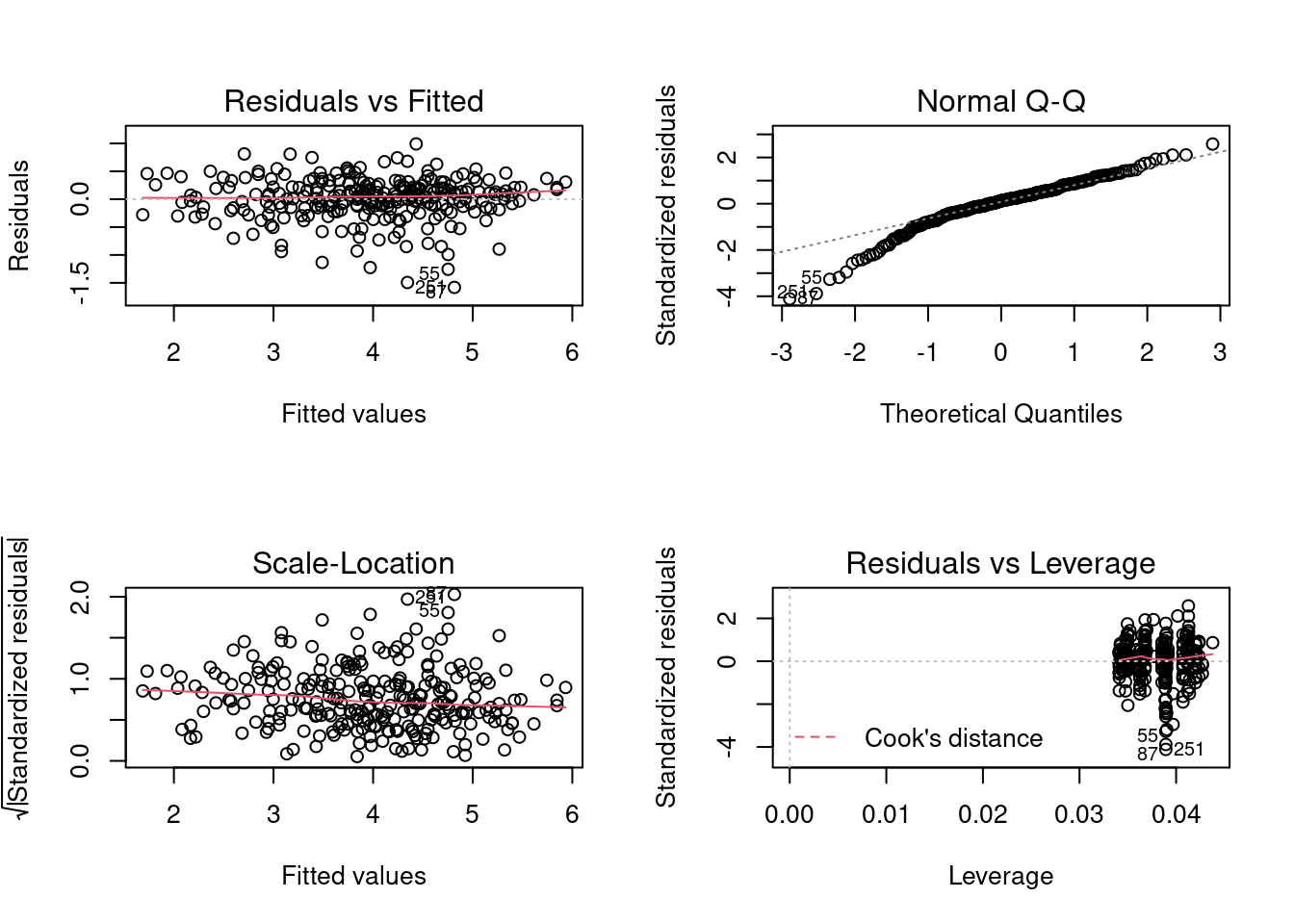

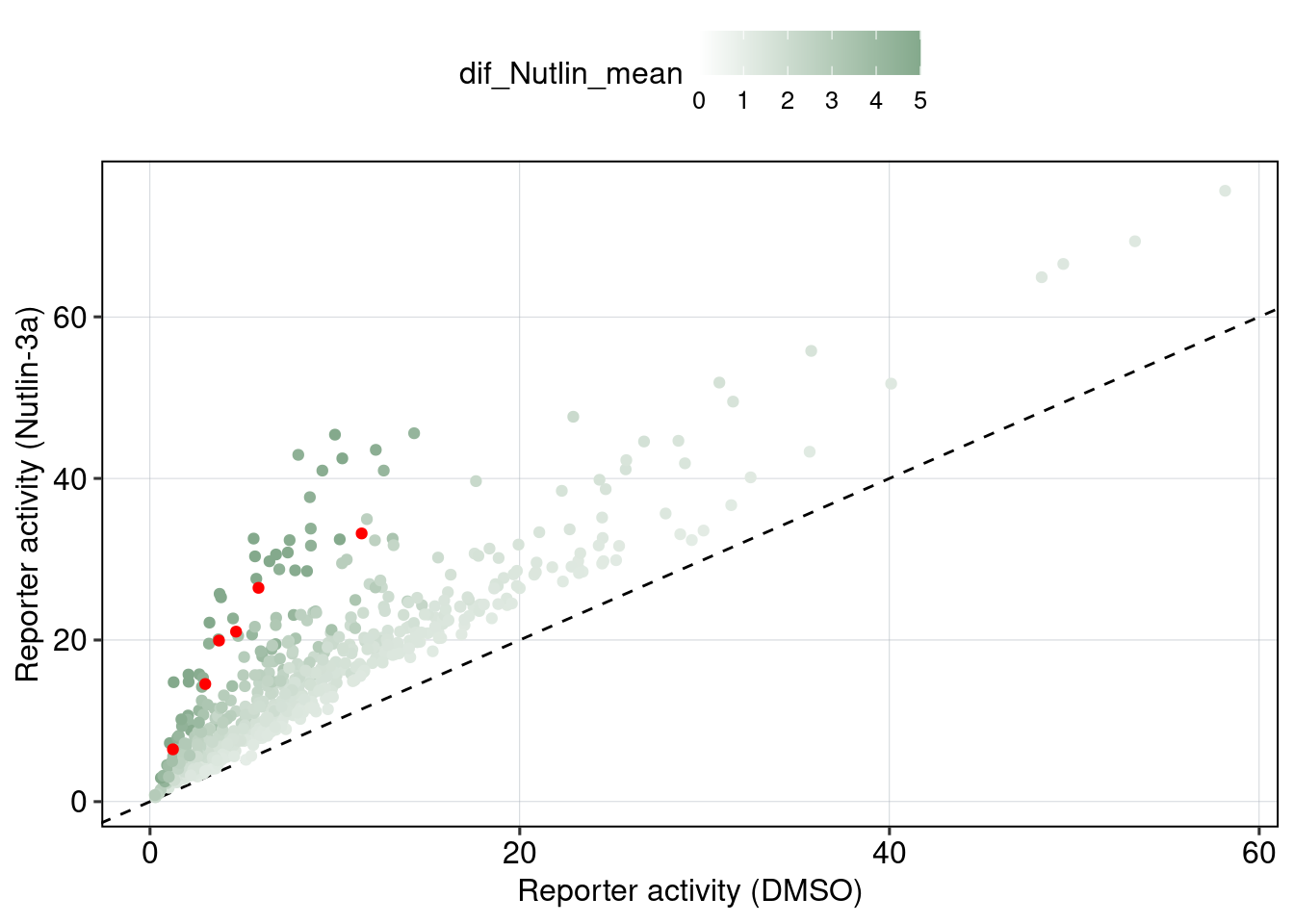

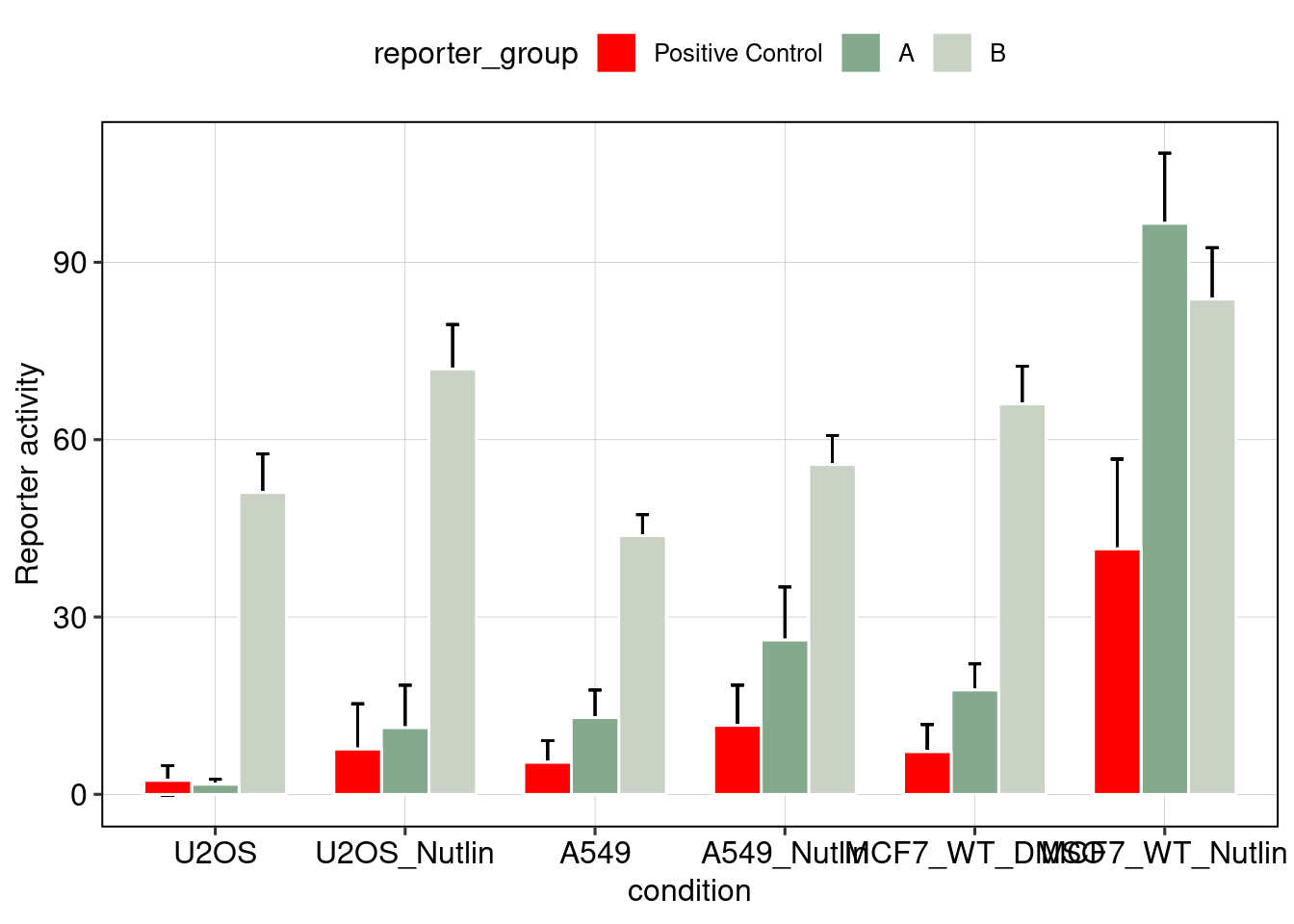

Figure 5 & 6: Linear model + Selection of best reporters

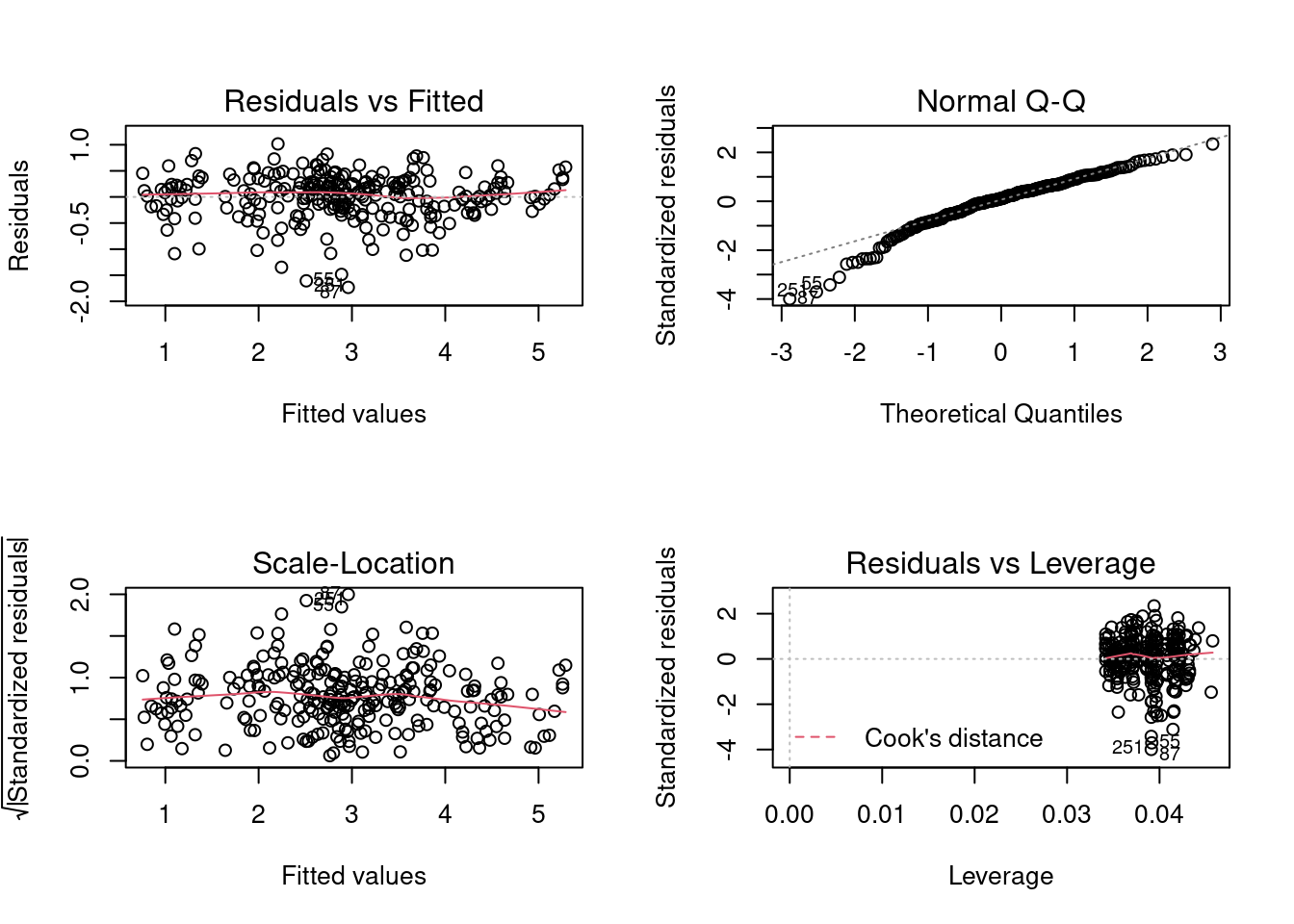

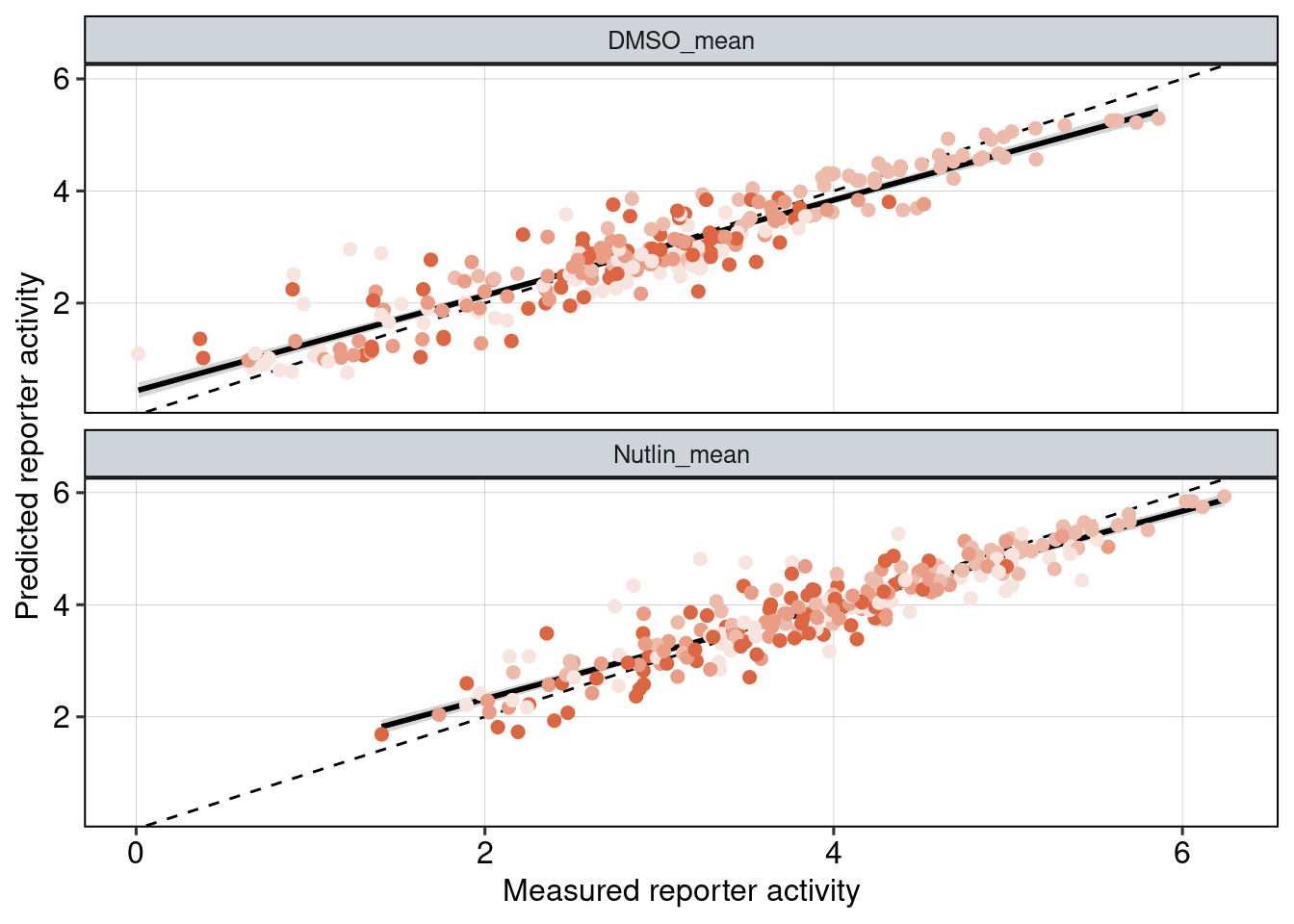

Aim: Can we explain now every observation using a linear model?
## [1] 0.08400584## MODEL INFO:
## Observations: 263 (1 missing obs. deleted)
## Dependent Variable: log2(reporter_activity)
## Type: OLS linear regression
##
## MODEL FIT:
## F(9,253) = 145.09, p = 0.00
## R² = 0.84
## Adj. R² = 0.83
##
## Standard errors: OLS
## ---------------------------------------------------------------
## Est. S.E. t val. p
## -------------------------------- ------- ------ -------- ------
## (Intercept) 3.07 0.07 41.69 0.00
## promotermCMV 1.30 0.08 15.39 0.00
## background2 -0.89 0.08 -10.59 0.00
## background3 0.37 0.08 4.45 0.00
## spacing_degree_transf 0.50 0.03 14.65 0.00
## affinity_id3_med_only 0.35 0.07 5.12 0.00
## affinity_id5_low_only 1.06 0.07 15.49 0.00
## affinity_id7_very-low_only 0.48 0.07 7.03 0.00
## promotermCMV:background2 0.38 0.12 3.19 0.00
## promotermCMV:background3 -0.82 0.12 -6.95 0.00
## ---------------------------------------------------------------
## MODEL INFO:
## Observations: 259 (5 missing obs. deleted)
## Dependent Variable: log2(reporter_activity)
## Type: OLS linear regression
##
## MODEL FIT:
## F(9,249) = 158.00, p = 0.00
## R² = 0.85
## Adj. R² = 0.85
##
## Standard errors: OLS
## ---------------------------------------------------------------
## Est. S.E. t val. p
## -------------------------------- ------- ------ -------- ------
## (Intercept) 2.09 0.09 24.50 0.00
## promotermCMV 1.60 0.10 16.73 0.00
## background2 -0.88 0.10 -9.15 0.00
## background3 0.53 0.10 5.49 0.00
## spacing_degree_transf 0.19 0.04 4.84 0.00
## affinity_id3_med_only -0.04 0.08 -0.52 0.60
## affinity_id5_low_only 1.41 0.08 17.97 0.00
## affinity_id7_very-low_only -0.26 0.08 -3.32 0.00
## promotermCMV:background2 0.19 0.14 1.42 0.16
## promotermCMV:background3 -1.15 0.13 -8.53 0.00
## ---------------------------------------------------------------

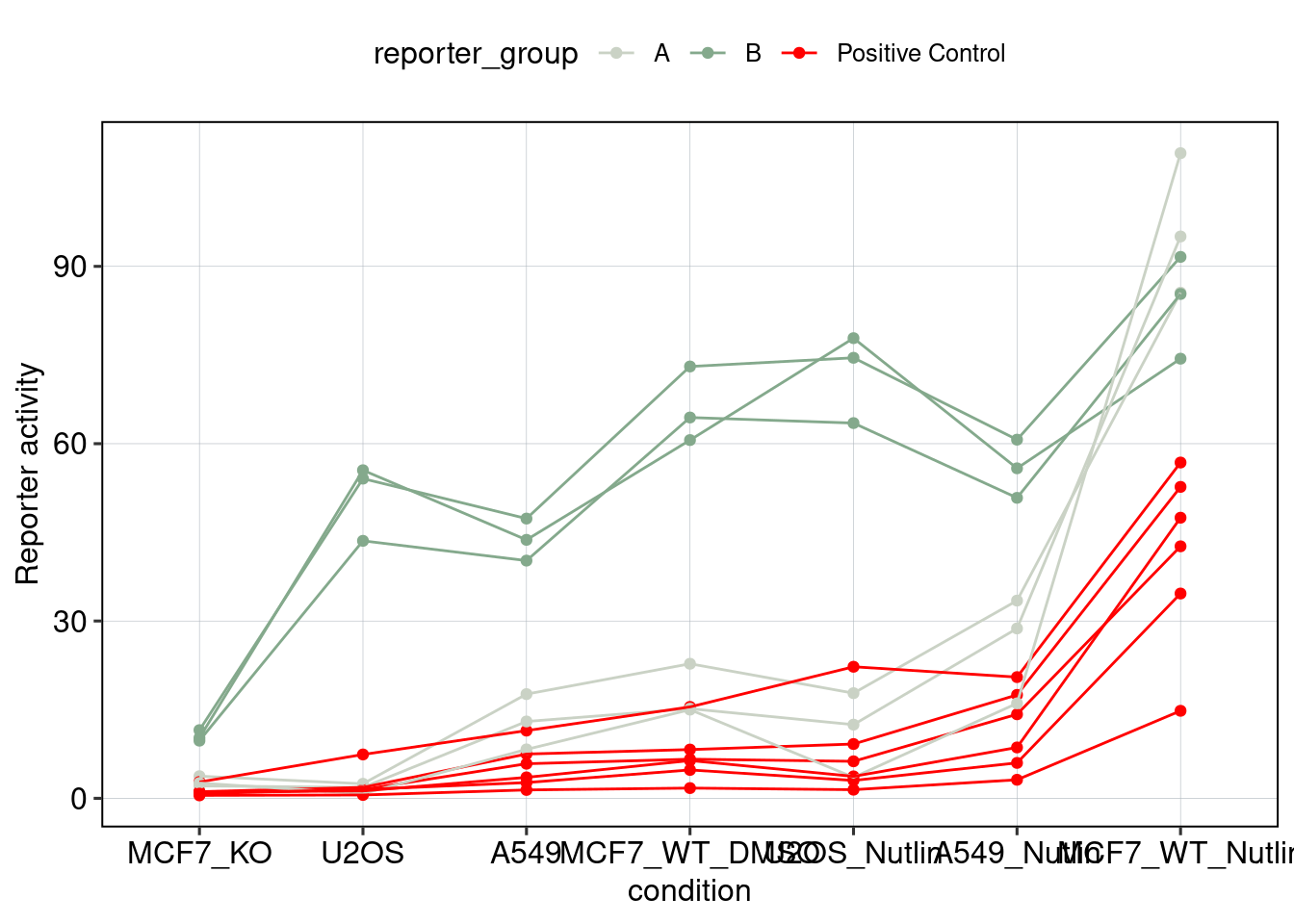

Conlusion: Top reporters are better than commercial reporters. Linear model gives insights into which features are important to drive high expression.
